Delta Wallbox DCFC 25kW - Single Port

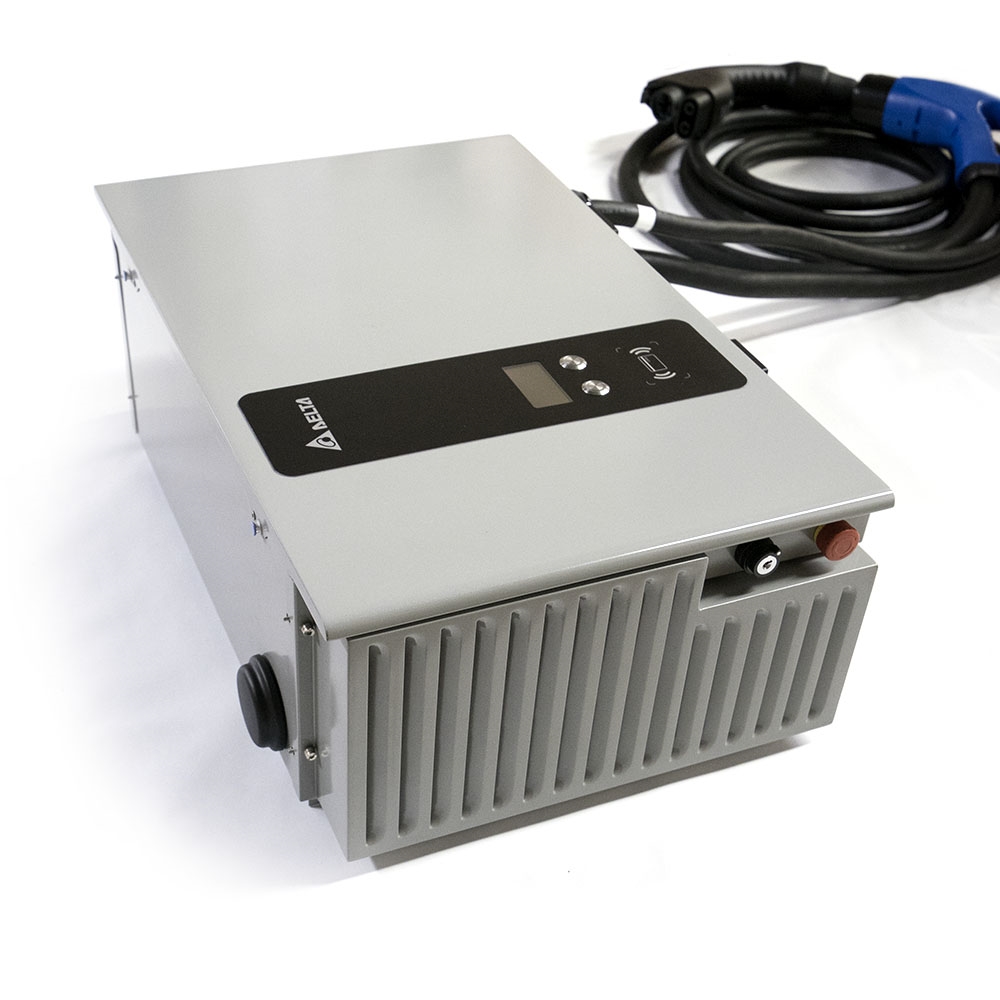

delta dc quick charger wall box

Alternative Views:


LEAD TIMES VARY - PLEASE CALL

Availability: Usually ships same day or next day
Product Code: DELTADCFCSINGLE
Call for Project Pricing and Assistance

Description

Delta's newly-launched 25kW Wallbox DC Quick EV Charger aims to improve convenience to EV drivers. The fast charger features an SAE combo charge connector.

Beside its fast charging features (the 24kWh battery of a Nissan Leaf can be recharged from 0% to 80% in approx. 40 minutes), the system offers a pluggable modular power system architecture for a meaningful reduction in installation and maintenance costs.

Delta's EV Charging Solutions feature RFID and mobile app user access, which make these EV chargers ideal for various commercial applications like EV parking, fleet charging and also residential.

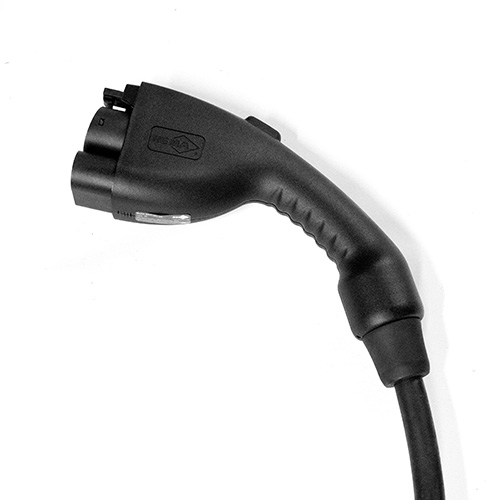

  • SAE Combo charging port
  • DIN 70121 / CHAdeMO compliance
  • Max. output power: 25kW
  • Output voltage range: 200-500Vdc (SAE Combo); 50-500Vdc (CHAdeMO)
  • Max. 94% power efficiency
  • RFID card reader for user authentication
  • Network connectivity (OCPP)
  • Type 3R protection and IK08 vandal-proof casing
  • Available in 3 power inputs (pricing varies, please call 585.533.4051):
    • 3 phase, 208 volt
    • 3 phase, 480 volt
    • 1 phase, 240 volt

For more specifications, take a look at the datasheet.

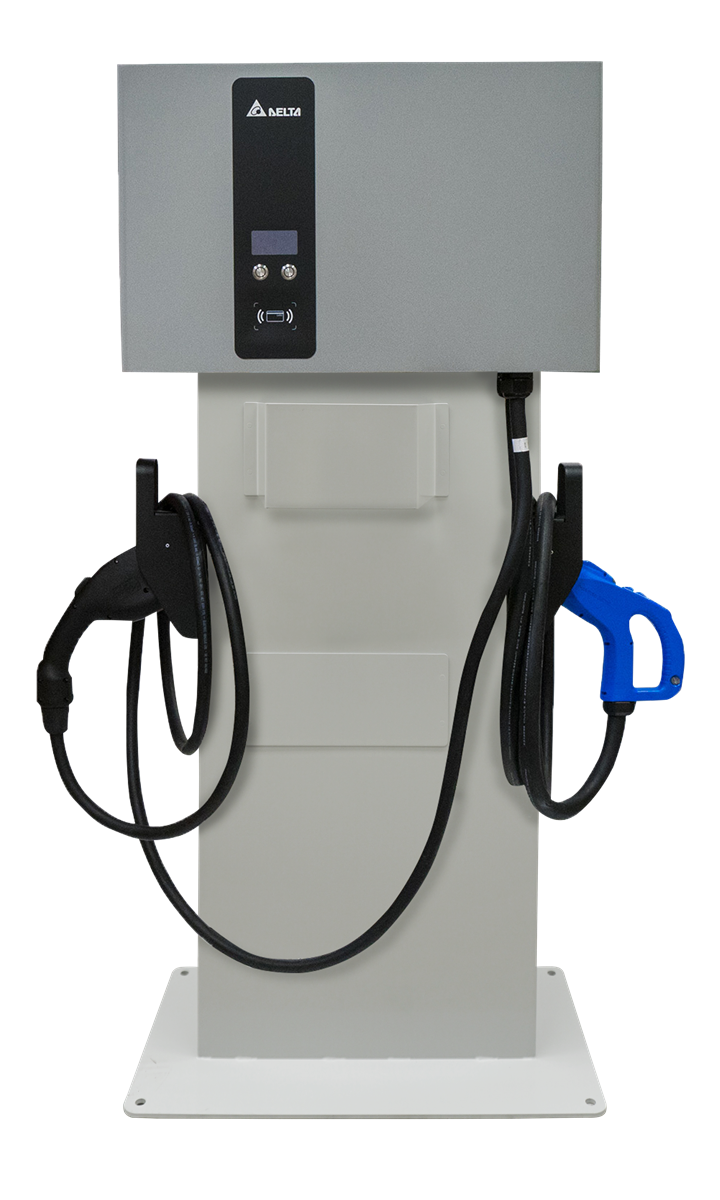

Specifications on the pedestal mount can be found here.
