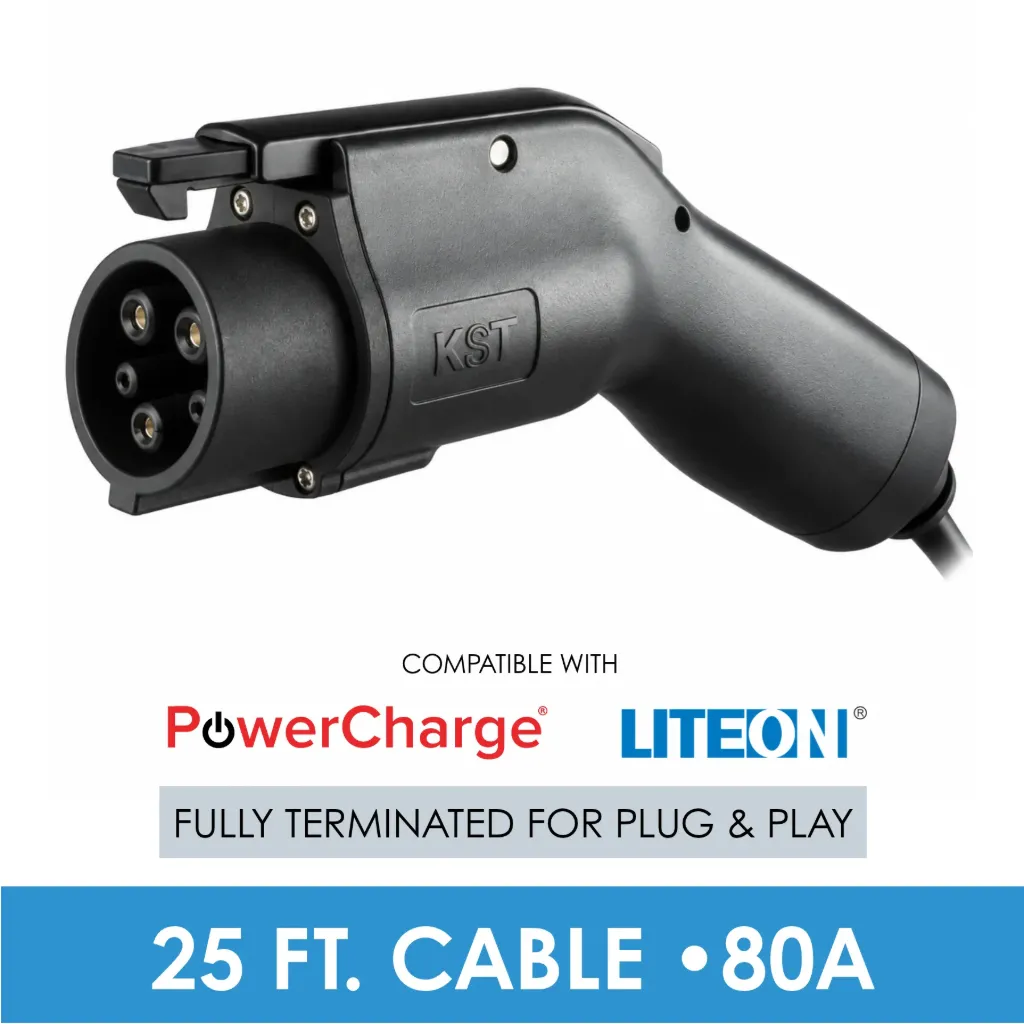

Replacement EV 80A Charging Cable with J1772 Connector (for PowerCharge & LiteOn Level 2 Chargers) — 25 feet — fully terminated for plug & play

Replacement Cable for PowerCharge and LiteOn Level 2 Chargers.

This J1772 Replacement EV Charging Cable is a 25-foot replacement EV charging cable with a Type 1 SAE J1772 vehicle connector designed to be compatible with PowerCharge and LiteOn Level 2 Chargers. Rated for 80 amps at 240V AC, this single-phase cable assembly is designed for use with compatible PowerCharge and LiteOn EV charging equipment, providing convenient reach between the charging station and vehicle.

Built for repeated everyday use, the connector features a rugged, ergonomic unibody design for comfortable handling. Its low-contact-resistance construction and rating of at least 10,000 insertions and removals support regular connection and disconnection during charging.

This 80A J1772 replacement charging cable features a 23.5 mm cable diameter and an operating temperature range of -40°F to 104°F. The connector carries an IP67 body protection rating and an IP44 rating when mated.

Product Specifications

• Product Type: Replacement EV charging cable with vehicle connector

• Charger Compatibility: PowerCharge and LiteOn Level 2 Chargers

• Cable Length: 25 ft.

• Connector Type: Type 1 — SAE J1772

• Rated Current: 80A

• Rated Voltage: 240V AC

• Phase: Single-phase

• Cable Outside Diameter: 23.5 mm

• Cable Conductors: 2 × 6 AWG + 1 × 8 AWG + 1 × 16 AWG

• Color: Black

• Connector Body Protection: IP67

• Mated Connection Protection: IP44

• Operating Temperature: -40°F to 104°F (-40°C to 40°C)

• Connection Cycle Rating: At least 10,000 insertions and removals

• Main Materials: PBT, PC, PA66, and copper alloy

• Flammability Rating: UL 94 V-0

• Standard Conformity: UL 2251, per manufacturer

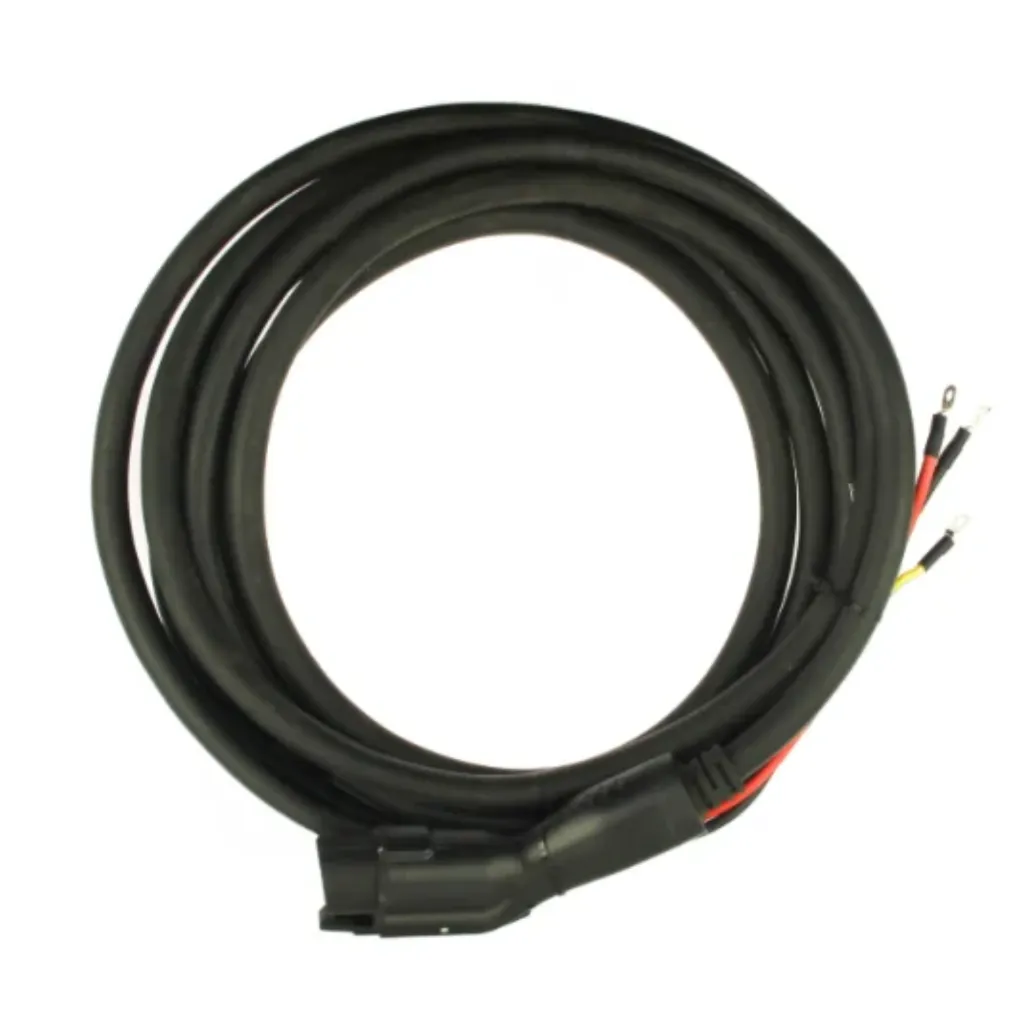

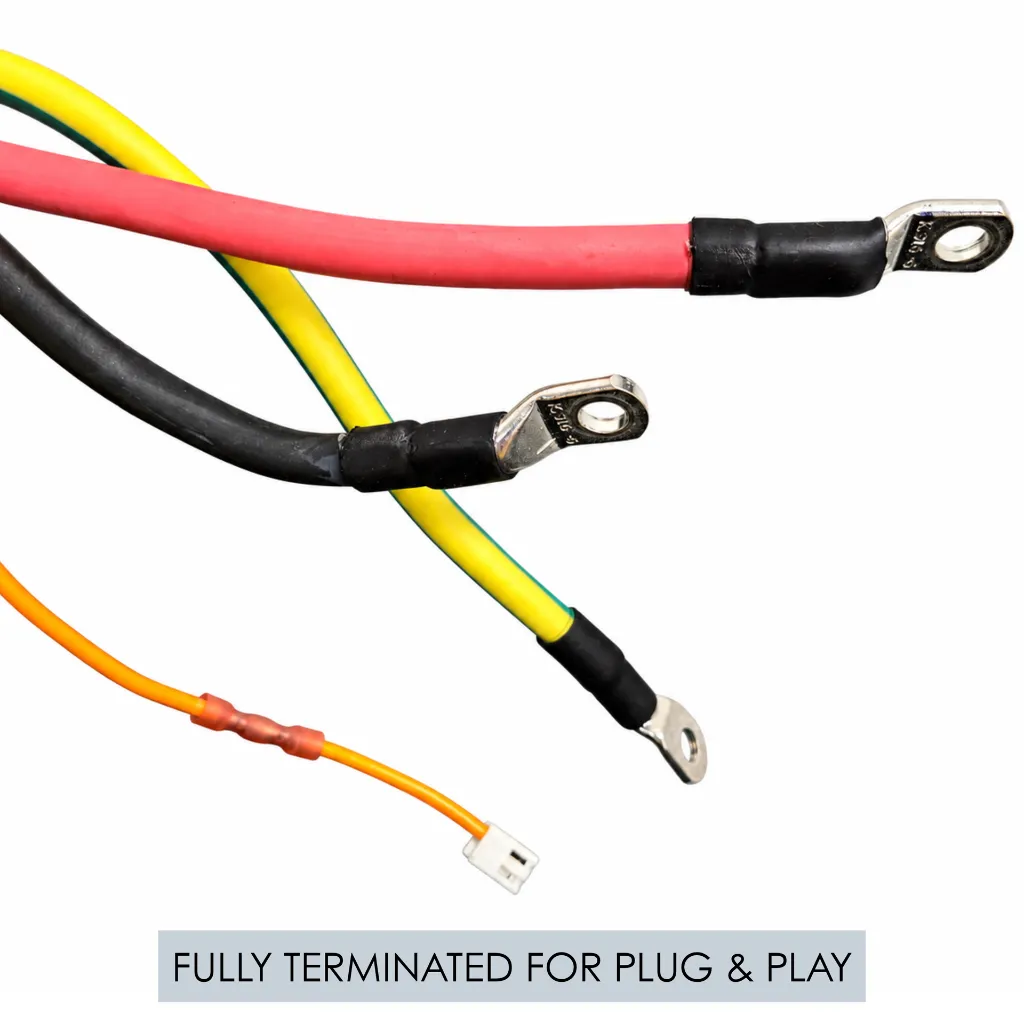

• Fully terminated for plug & play

•
