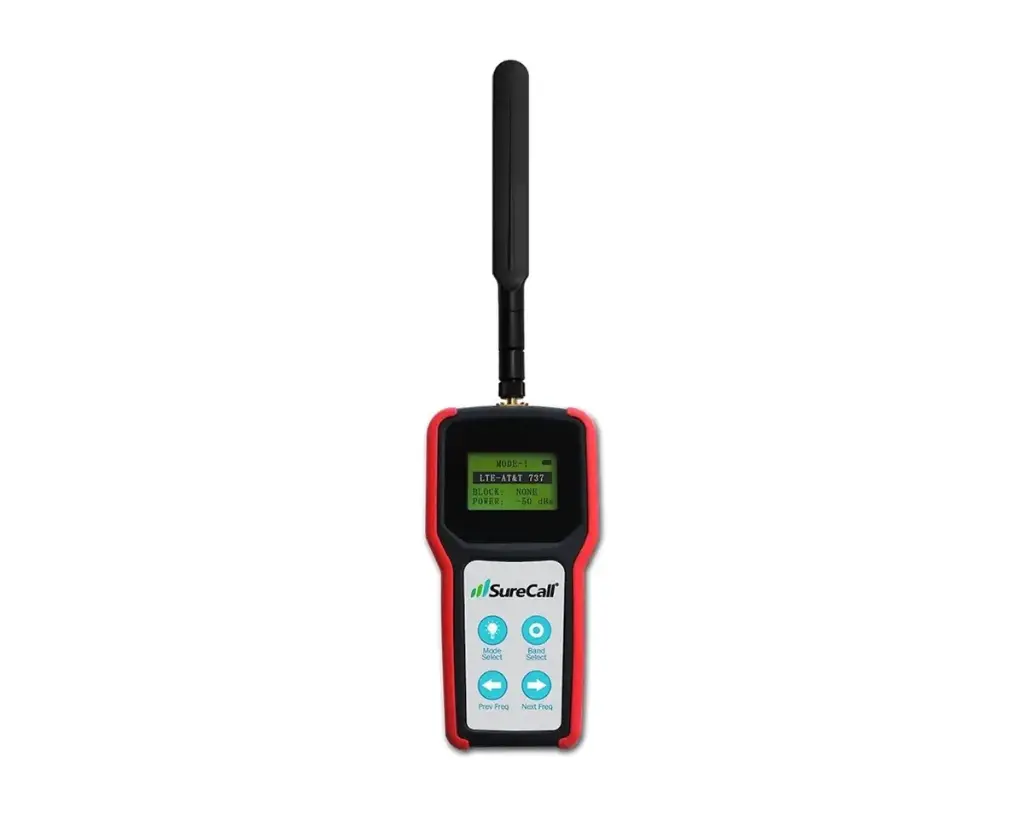

Surecall Meter
Quickly measure signal strength, map indoor frequency levels, and identify optimal antenna alignment with the SureCall RF Signal Meter. Designed for professional installation of cell signal boosters, this meter helps you evaluate LTE, AWS, PCS, and Cellular frequencies used by all major North American carriers.
Use the included whip antenna to assess indoor signal levels, locate dead zones, and determine coverage needs. Then measure outdoor signal strength to find the ideal spot for your exterior antenna. For precision alignment, connect the meter directly to an antenna using the supplied cables.
Kit Includes
- RF Signal Meter
- Flat right-angle antenna (SMA-Male)
- 24" SMA-Male to N-Male cable
- 9" SMA-Male to N-Female cable
- N-Female to F-Male adapter
- N-Female to F-Female adapter
- 110V AC power adapter
- (4) AAA NiMH rechargeable batteries
Technical Specifications
Frequencies:
- 728–746 MHz (LTE), 746–757 MHz (LTE), 869–894 MHz (Cellular), 1930–1995 MHz (PCS), 2110–2155 MHz (AWS)
Supported Standards:
- Cellular, PCS, AWS, Verizon LTE, AT&T LTE
- Input Impedance: 50 Ohm
- Max Gain Shown: –40 dBm
- Receive Sensitivity: –110 dBm
- Tolerance: <3 dB
Power:
- AC Adapter Input: 110V / Output: 5V DC
- DC Power: (4) AAA NiMH rechargeable batteries
- Power Consumption: <1.5 W
- RF Connector: SMA Female
- Cable: RG-174
Battery Life:
- Standby: 3.5 hours
- Active: 2.5 hours
Weight: 7.2 oz
Dimensions: 6.3" × 3.3" × 1.3"
