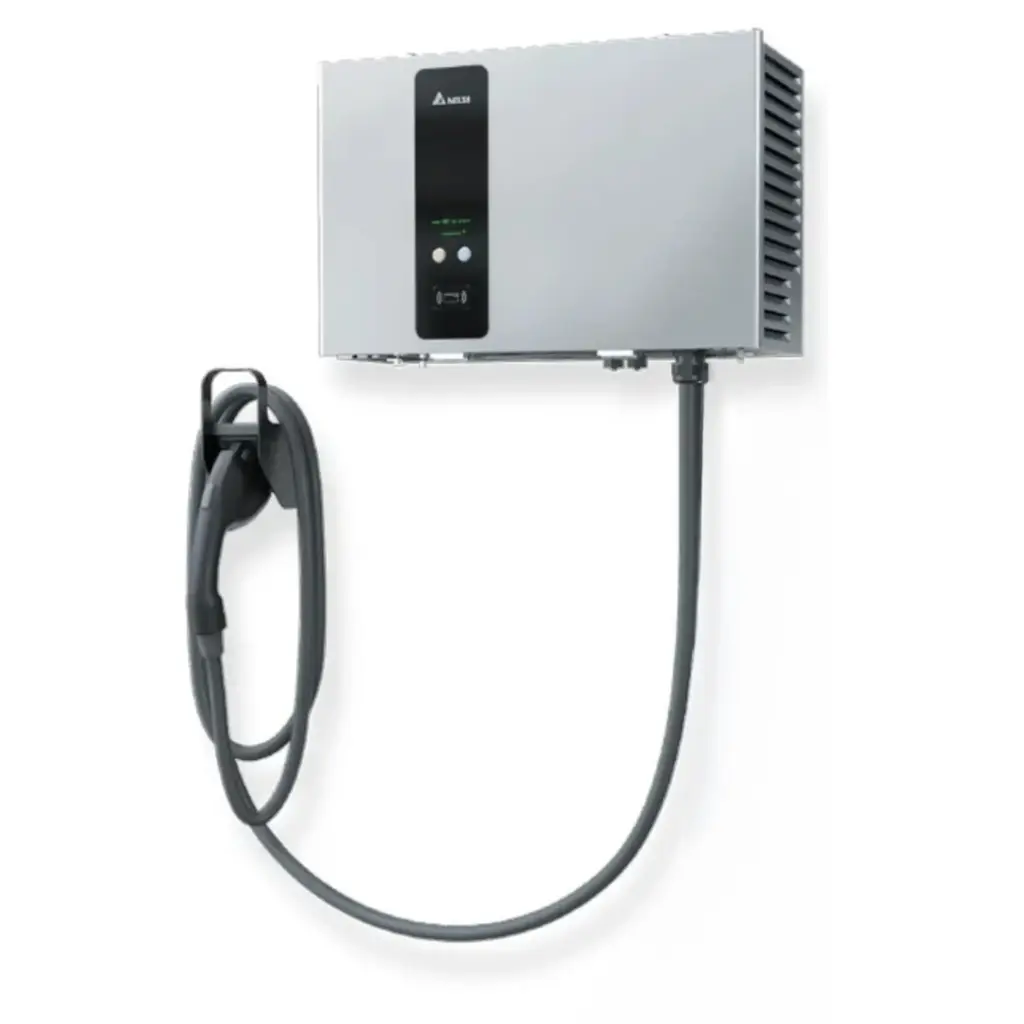

Delta 25kW DC Wallbox Charger with CCS1 Connector – 480V Three-Phase

The Delta 25 kW DC Wallbox Charger delivers DC fast charging in a compact, wall-mounted design for commercial EV charging installations. Equipped with a CCS1 connector and an approximately 23-foot charging cable, it provides convenient reach for compatible electric vehicles.

This model delivers up to 25 kW of charging power, with a DC output range of 100–1,000 volts and a maximum output current of 50 amps. It requires 480-volt, three-phase AC power.

Built-in RFID authentication helps manage charging access, while Ethernet and cellular connectivity support integration with compatible charging management systems. A 2.7-inch OLED display provides charging information, and the modular design supports installation and ongoing maintenance.

Key Features

• Up to 25 kW DC charging output

• CCS1 charging connector

• Approximately 23-foot cable (7 meters)

• 480V AC, three-phase, 60 Hz electrical input

• 100–1,000 VDC output range; 50A maximum

• RFID user authentication

• OCPP 1.5S and 1.6J support

• Type 3R enclosure with IK10 impact protection

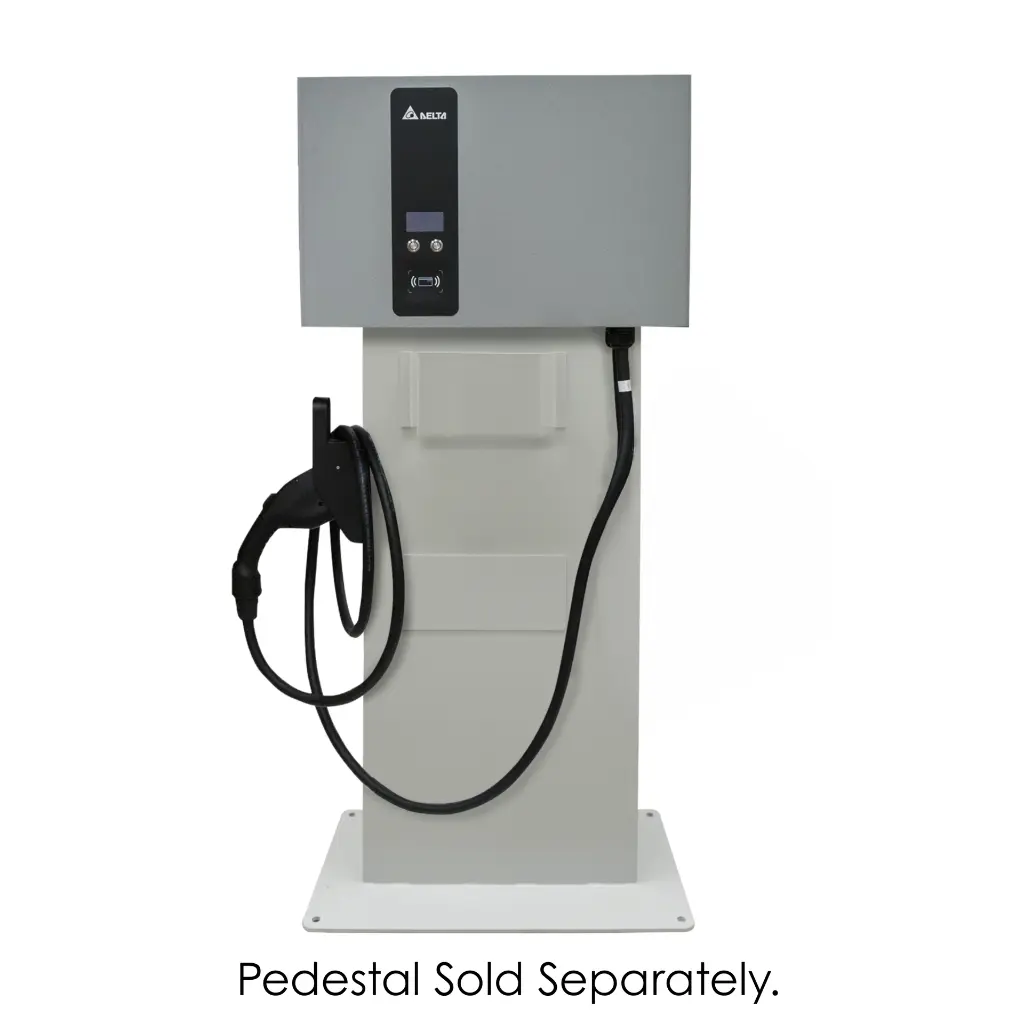

• Wall mounting or installation on an optional stand

Easy Setup: No formal commissioning required unless using software.

Contact EV Charge Solutions® for product selection and mounting options for your project.
