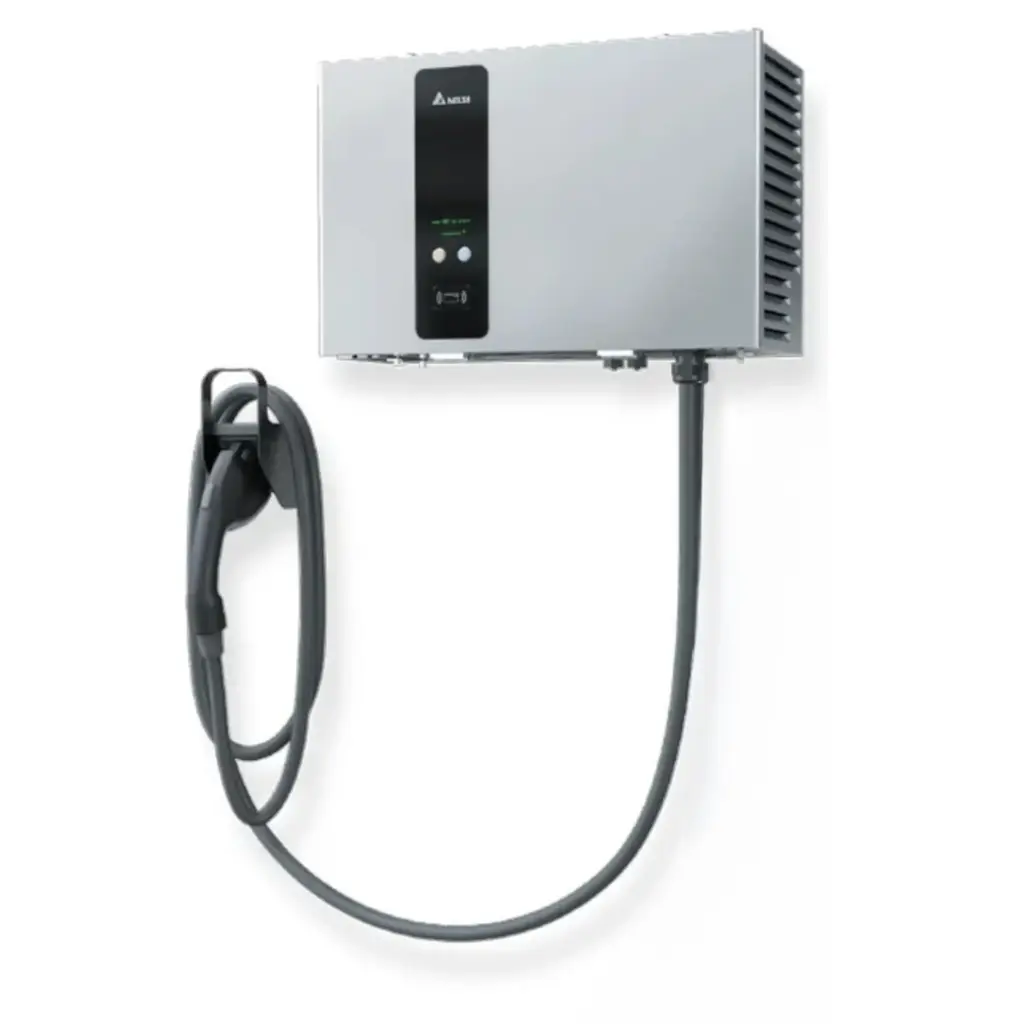

Delta 25kW DC Wallbox Charger with CCS1 Connector – 208V Three-Phase

The Delta 25 kW DC Wallbox Charger provides DC fast charging in a compact, wall-mounted design for commercial EV charging installations. Its CCS1 connector and approximately 23-foot charging cable offer convenient access for compatible electric vehicles.

This model delivers up to 25 kW of charging power, with an output range of 100–1,000 volts DC and a maximum output current of 50 amps. Designed for sites with 208-volt, three-phase AC power, this charger offers a space-saving solution for adding DC charging infrastructure.

Built-in RFID authentication helps manage user access, while Ethernet and cellular connectivity support integration with compatible charging management systems. The 2.7-inch OLED display provides charging information, and the modular design supports ongoing maintenance.

Key Features

• Up to 25 kW DC charging output

• CCS1 charging connector

• Approximately 23-foot cable (7 meters)

• 208V AC, three-phase, 60 Hz electrical input

• 100–1,000 VDC output range; 50A maximum

• RFID user authentication

• OCPP 1.5S and 1.6J support

• Type 3R enclosure with IK10 impact protection

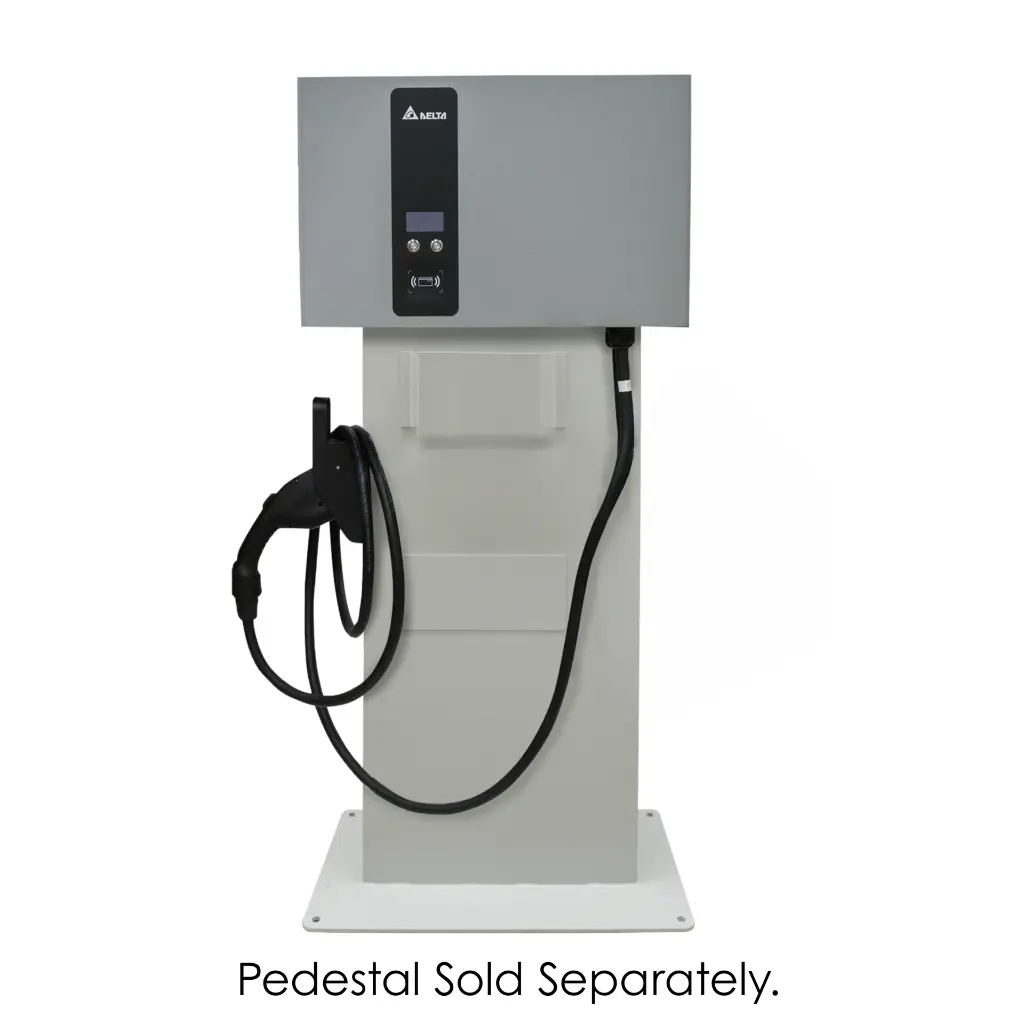

• Wall mounting or installation on an optional stand

Easy Setup: No formal commissioning required unless using software.

Contact EV Charge Solutions® for product selection and mounting options for your project.
