Webasto 48a 20' Cable

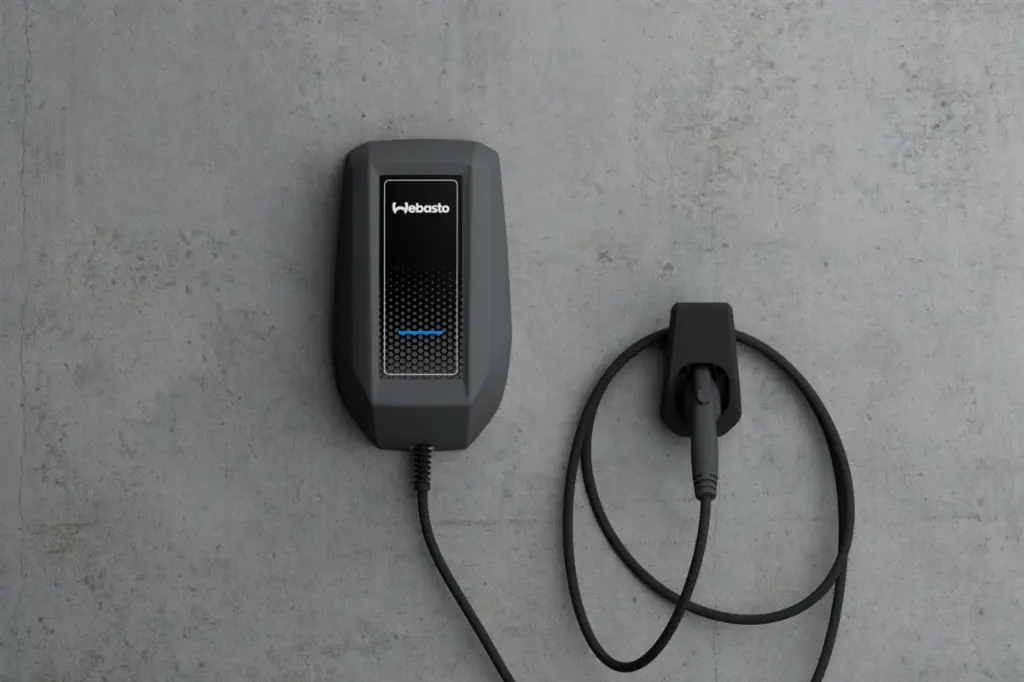

TurboConnect: The Future of Smart EV Charging
Premium Level 2 wallbox with Wi-Fi, Bluetooth, and Ethernet delivering up to 50 miles of range per hour with a sleek, durable design.
Tech Specs
- Current: Adjustable 6A–48A
- Max Power Output: 11.5 kW at 240V
- Coupler: SAE J1772 Type 1
- Storage Temperature: –40°C (–40°F) to +85°C (185°F)
- Operating Temperature: –30°C (–22°F) to +60°C (140°F)
- Indoor/Outdoor Rating: IP65 enclosure, NEMA 3S, IK10
- Electrical Safety: Integrated GFCI (AC & DC), over/undervoltage protection, surge protection
- Thermal Safety: Active temperature monitoring & automatic derating
- Connectivity: Wi-Fi 4, Ethernet 100 Mbit/s, BLE 4.2
- Cybersecurity: Compliant with ISO 21434 & UNECE R155
- Backend Connectivity: OCPP 1.6J (OCPP 2.0.1 ready)
- Communication Protocols: TCP/IP, Modbus TCP, EEBUS, SEP2.0
- Relative Humidity: 5%–95% (non-condensing)
- Cable Length: 20 ft (6 m)
- Dimensions: 17.5" × 10.1" × 5.2"
- Weight: ~12 lbs (5.5 kg)
Log In or Contact Sales for Personalized Pricing
