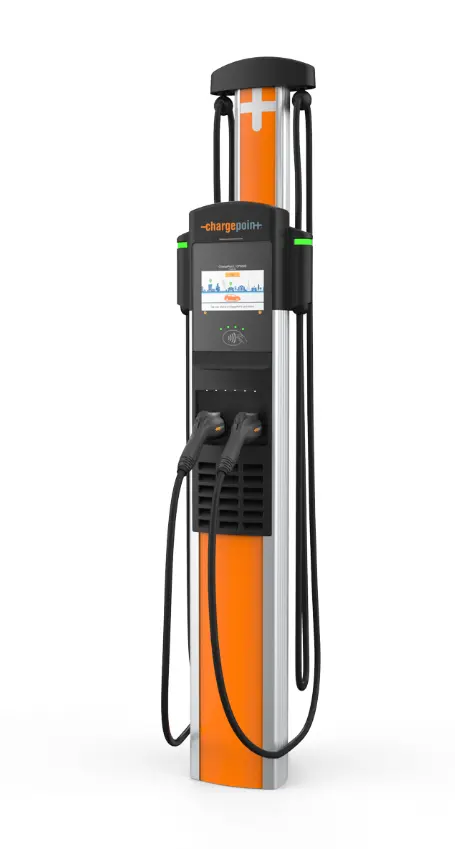

Chargepoint CP6000 50A
Seamlessly integrating charging management software, station hardware, driver interface, and customer support, the CP6000 Series offers complete charging control, flexibility, and reliability with a superior driver experience.

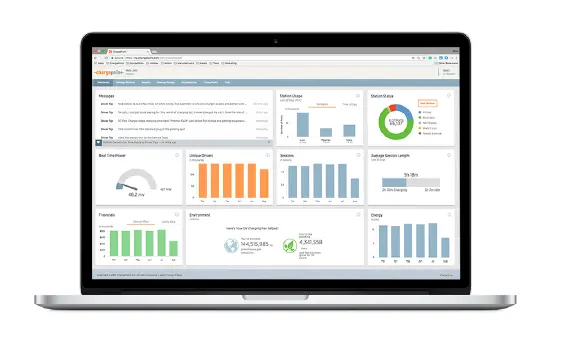

The CP6000 prepares businesses for the future of electric mobility, providing full control, dependable performance, and a user experience that keeps both drivers and owners satisfied. It is designed to meet the evolving charging needs of today and tomorrow. Intuitive software and robust hardware maximize utilization and operational efficiency, while flexible controls, power management tools, and wide network compatibility make it easy to get started, adjust settings, and scale as needed.
Technical Specifications

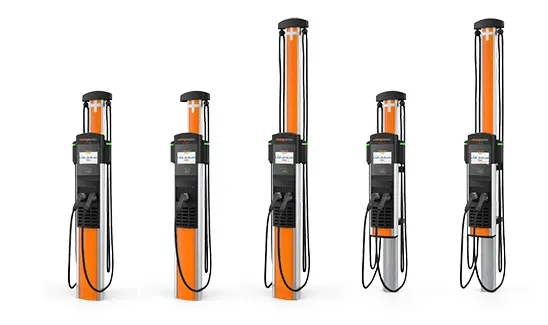

Mounting: Pedestal, Wall
Number of Ports: Single, Dual
Cable Length: 18' (5.5 m), 23' (7 m)
Connector/Port Type: SAE J1772
Electrical Output: Up to 12 kW or 19.2 kW per port
Connectivity: Cellular 4G LTE
Authentication & Payment:
RFID
Tap-to-charge (NFC)

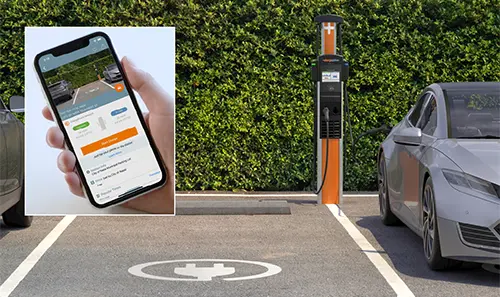

Remote via mobile app or in-vehicle
Contactless credit card
Display:
Full-color 8-inch interactive display with full-motion video, UV protection, gesture touch controls, and multi-language support
Network Protocol:
OCPP 2.0.1, ISO 15118 (supported by hardware)
Operating Temperature:
−40°F to 122°F (−25°C to 50°C)
Station Enclosure:
Type 3R per UL 50E
Safety & Compliance:
UL and C-UL listed; complies with UL 2594, UL 2231, and NEC Article 625
