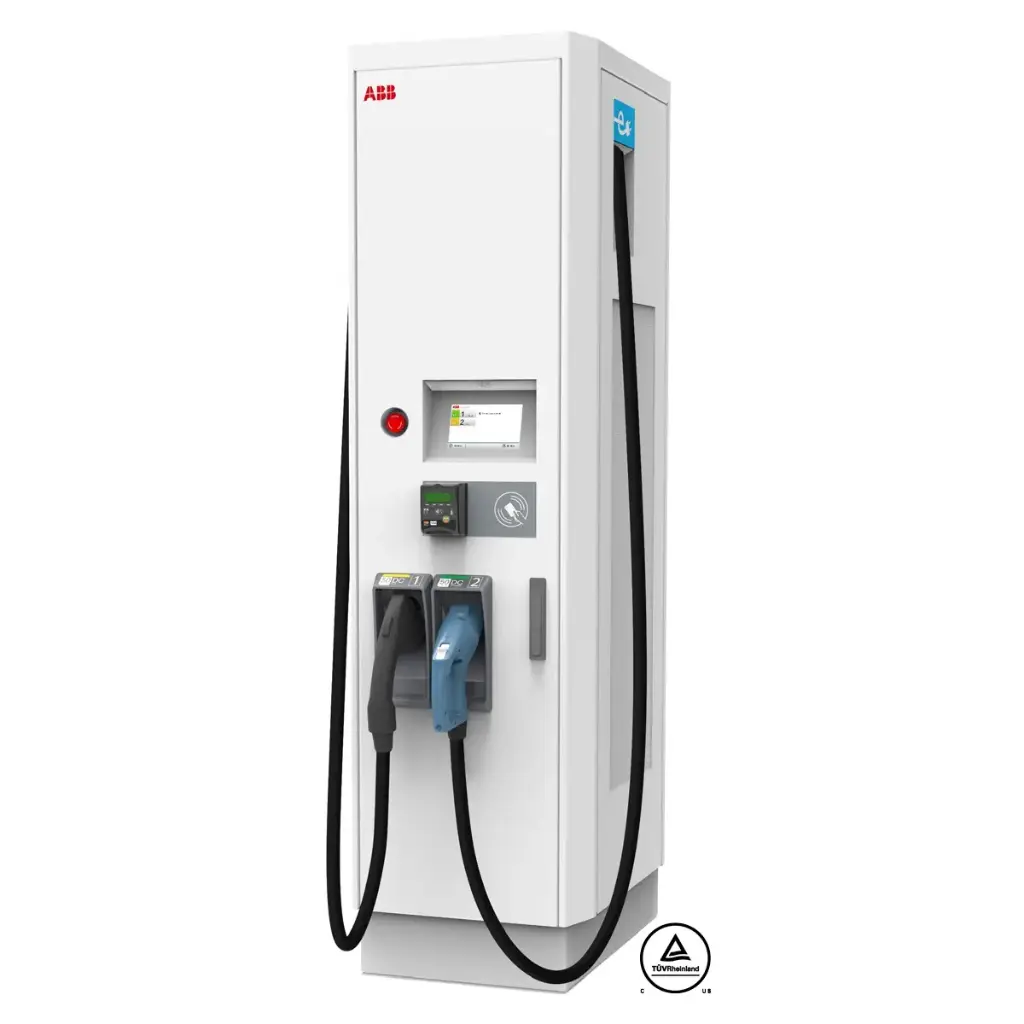

ABB Terra 54 50kW DC Fast EV Charger CCS1 with 20ft Cable
Building off a decade of EV fast charging experience, ABB’s Terra 54 joins the Terra family of bestselling DC fast charging stations for enhanced usability and reliability. The Terra 54 enables continuous 50 kW charging up to 500 V, while 200–920 V is supported by the Terra 54HV.
Optional features include:
Various back-end software and payment options
Cable management
Extended warranty
High-powered Terra 54HV option
Technical Specs
Input AC Power Connection: 3P + PE (no neutral)
Input Voltage Range: 480 V ± 10% (60 Hz)
Max Rated Input Current & Power: 80 A, 55 kVA; power limiting options available
Network Connection: GSM/3G modem; 10/100 Base-T Ethernet
Internal Reference:
6AGC107092
