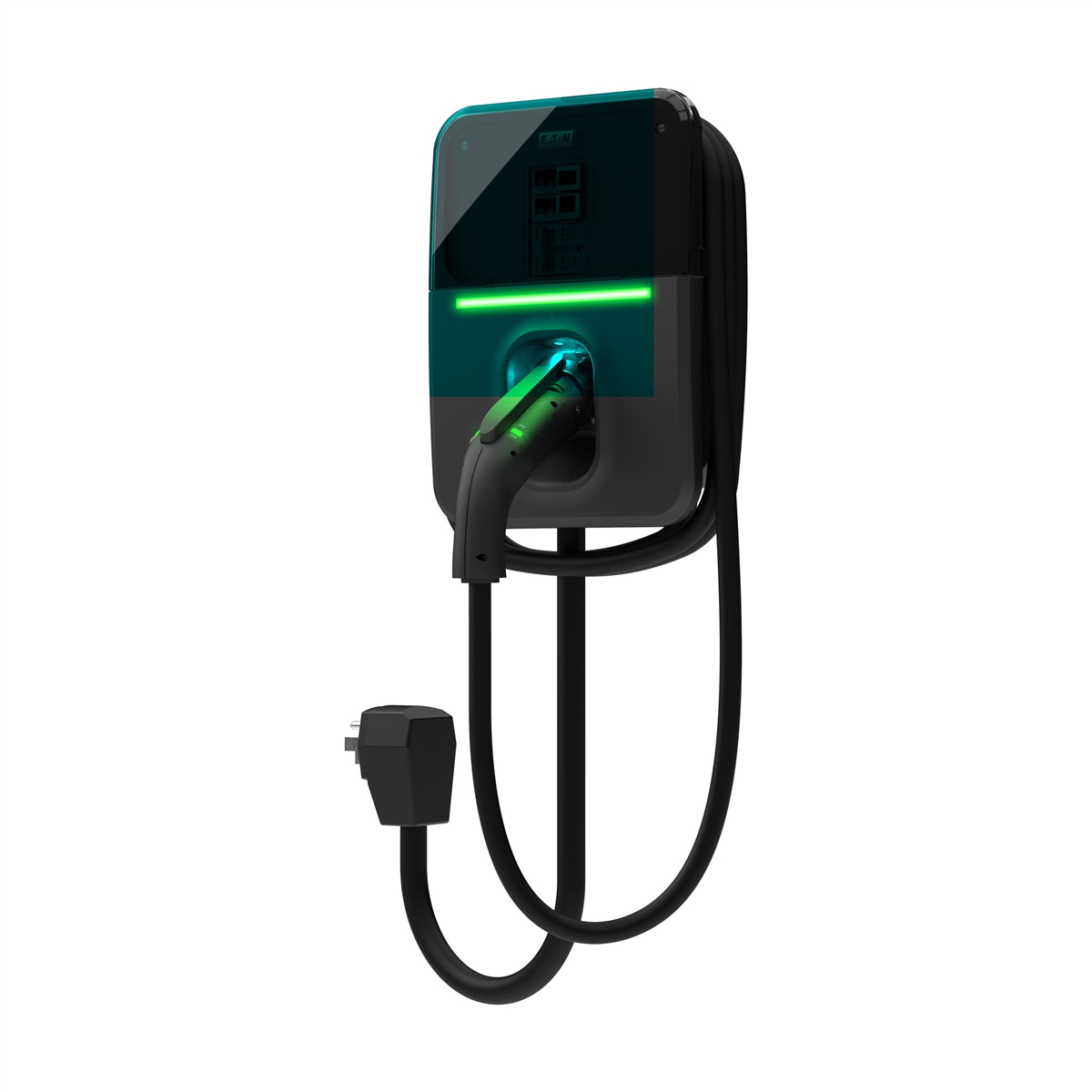

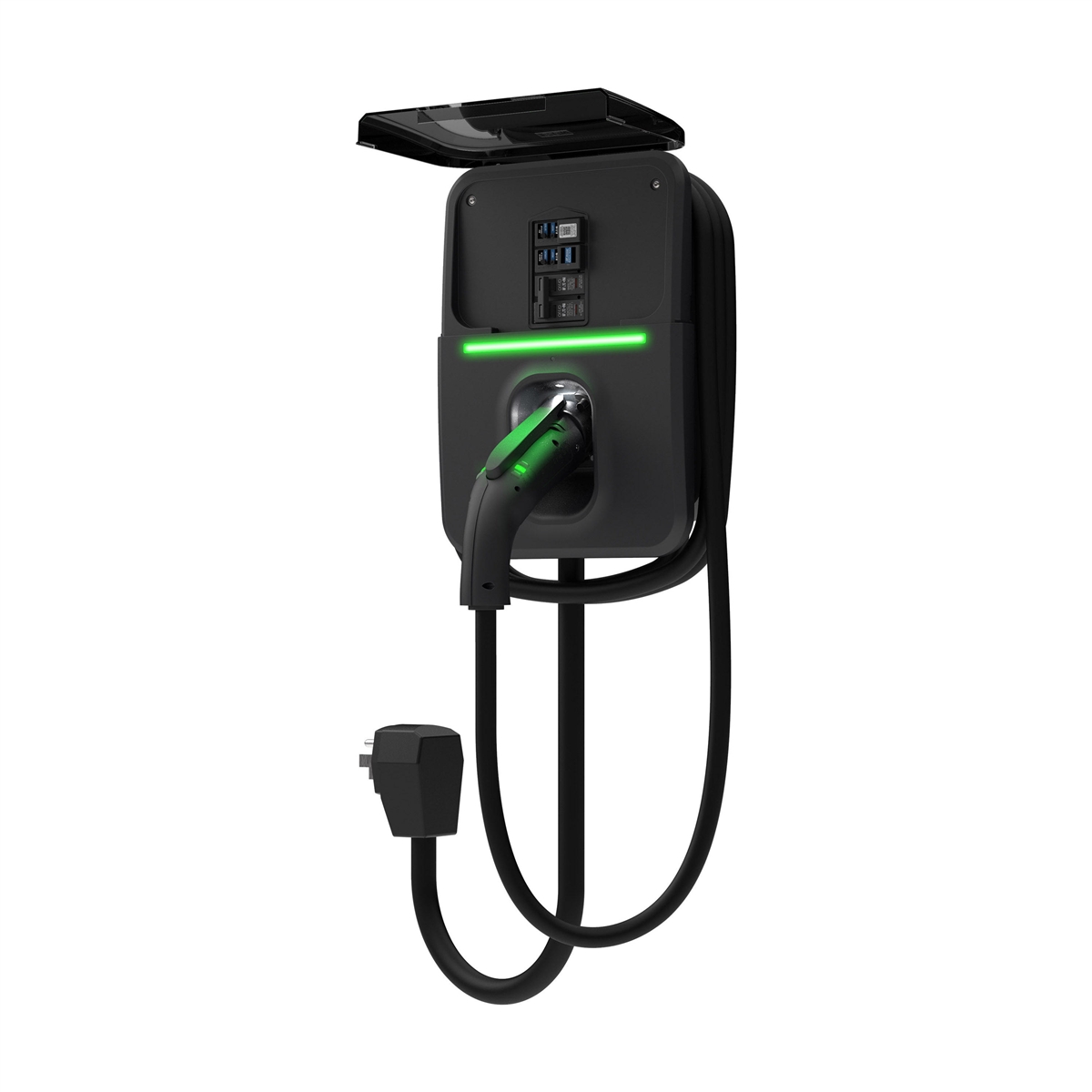

Eaton Green Motion EV wall charger
Eaton Green Motion EV charger combines fast AC charging at 7.7 kW, revenue-grade metering, and remote access, powered by smart breakers. This forward-thinking solution provides additional versatility with multiple installation options including single and dual pedestal mounts for maximum flexibility. Monitor and control charging with our mobile app and open APIs.
• 7.7 kW EV smart breaker wall charger
• J1772 EV connector and 25-foot cord
• Mounting option: wall or pedestal
Speed and control
• Fast AC charging at 7.7 kW, 240 Vac
• Revenue-grade metering accuracy (±0.2% per ANSI C12.20).
• Real-time and remote access allows you to optimize charging times and take part in smart grid programs.
Stay connected and customize
• Set charging schedules to optimize costs, receive alerts and notifications with the EV Charger Manager app.
• Powered by our Brightlayer platform enables integration with your preferred charge management solution.
Energy savings and efficiency
• Simply control rate of charge to not incur higher costs during peak rate periods.
• Efficient and simple installation with wall and pedestal mount options.
• ENERGY STAR® certification ensures maximum energy efficiency and savings.
- Input Electrical Ratings
• Voltage: Single Phase, 208-240 Vac, 60 Hz
• Breaker rating: 40 A
• Power: 7.7 kW at 240 Vac; 6.6 kW at 208 Vac
Output Electrical Ratings
• Voltage: 208-240 Vac, 60 Hz
• Current: 32 A
• Power: 7.7 kW at 240 Vac; 6.6 kW at 208 Vac
Wiring Options
• 2ft Cable with NEMA 14-50 Plug
• Hardwire
Output Cable
• 25’ Cable
• J1772 Compliant connector
Metering
• 0.2% accurate revenue grade metering tested to ANSI C12.20
LED Indicator
• RGB (Red, Green, Blue) LEDs to indicate charger status and fault condition on both the wall charger and the EV connector
Wireless Connectivity
• IEEE 802.11 b/g/n 2.4 GHz Wi-Fi
Cybersecurity
• Tested per cybersecurity guidelines endorsed by UL and IEC
Firmware Features
• Open platform with support for OCPP (Open Charge Point Protocol) 1.6J
• 4MB of local data storage to limit the possibility of data loss • Over-the-air (OTA) firmware updates
Enclosure
• NEMA 3R rated enclosure for indoor and outdoor installation
• Dimensions: 10.78” x 15.11” x 4.42” (W x H x D)
Weight
• Charger Enclosure Plus Cable:13.5 lbs.
Certifications
• Safety: UL, CSA, NFPA Article 625
• SAE J1772 2010 Ed.
• FCC Compliant, Part 15
• Energy Star®
• ANSI C12.20
• UL 489
Warranty
• 3 years
Product Length / Depth
• 10.74 in
Product Height
• 15.12 in
Product Width
• 4.42 in
Product Weight
• 15 lbs
|
|
|
 |
|
 |
|
