eGauge 'Core' Data Recorder

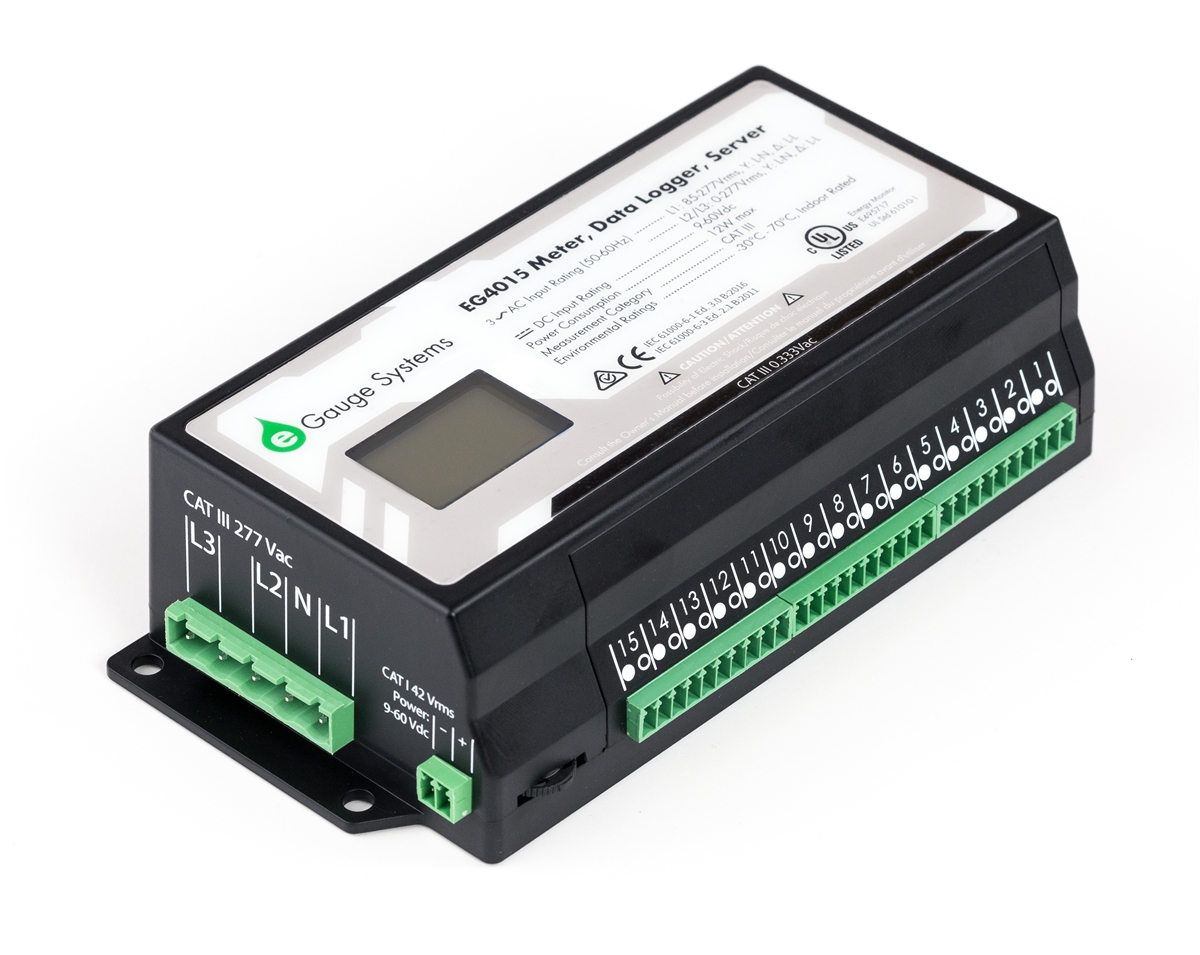

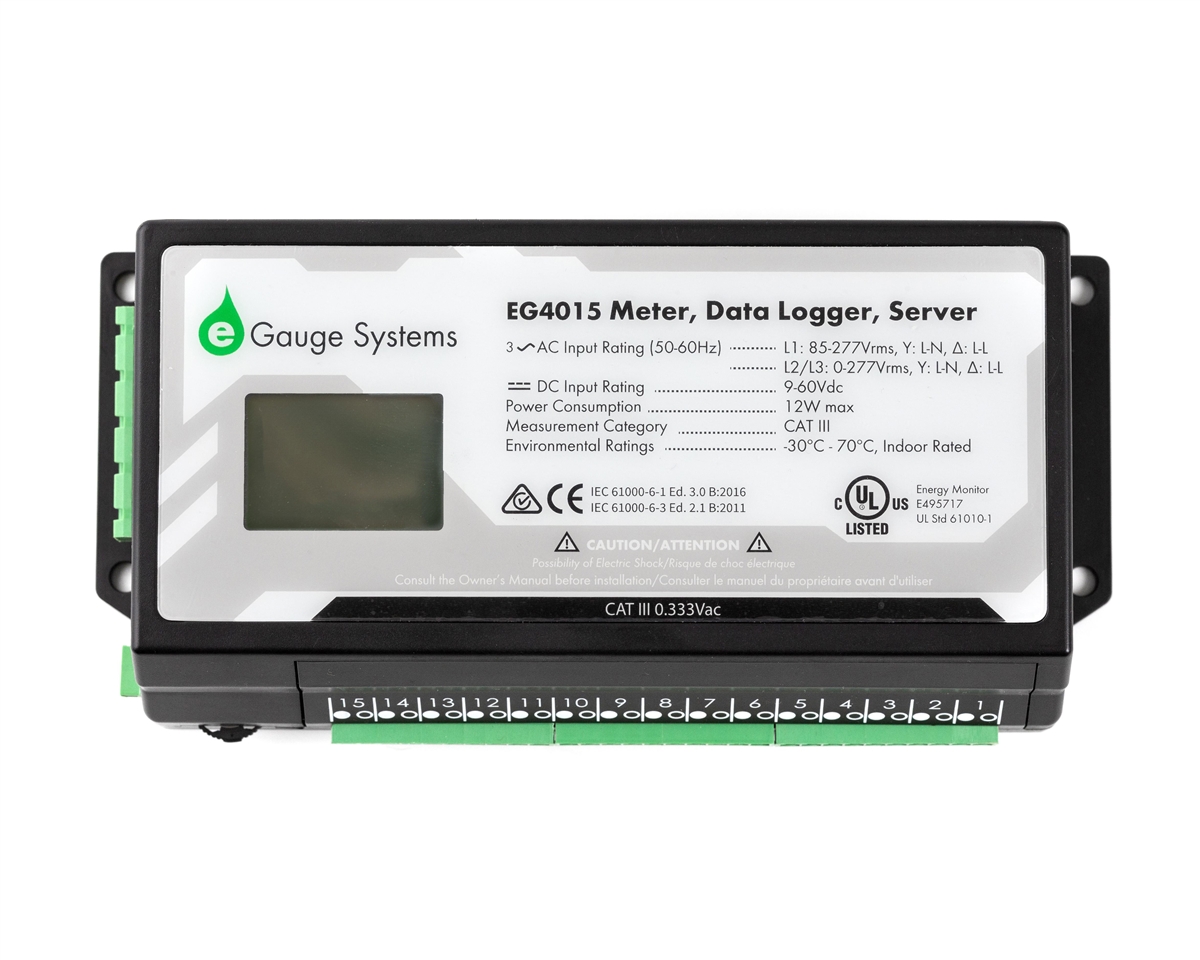

eGauge Core Energy Meter
Alternative Views:

Our Price: $549.00

Product Code: A005-4115-064

The eGauge Core is a 15 channel energy meter with 0.5% revenue grade accuracy compliance, making it an accurate and flexible solution for monitoring multiple circuits in any residential or commercial energy monitoring application.

Quick specs:

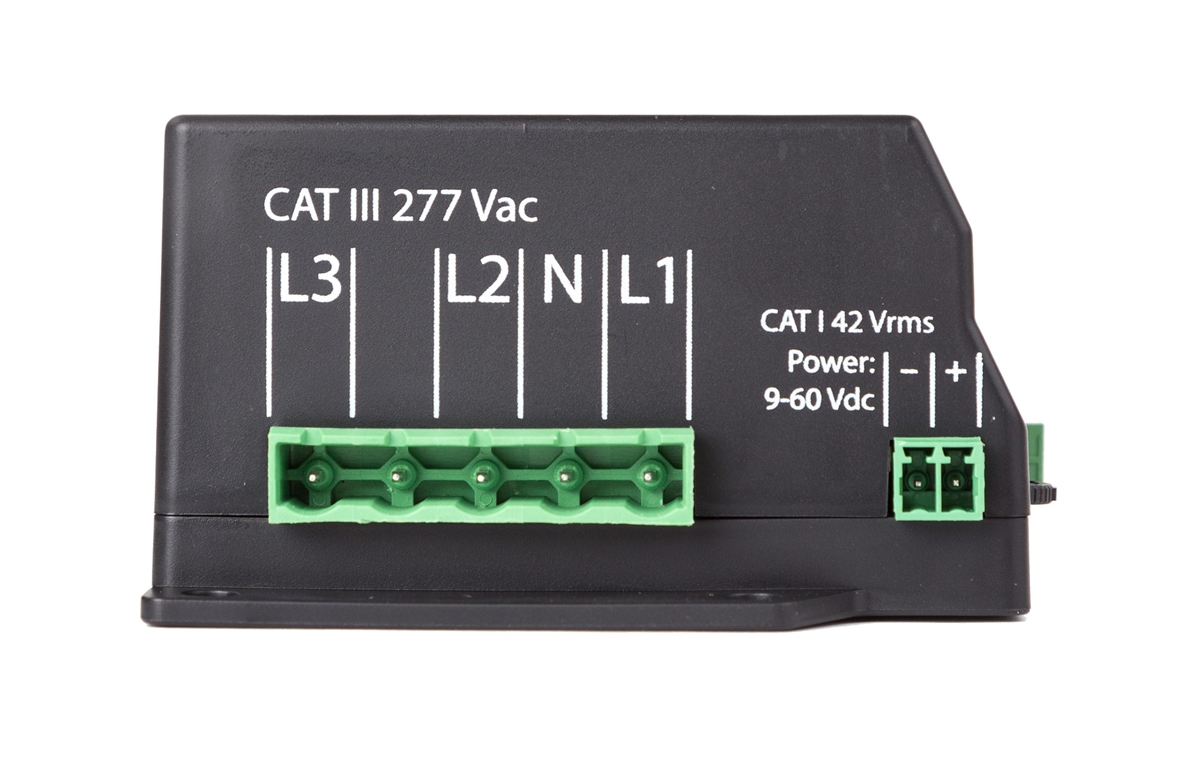

  • Measures electric AC or DC power on up to 30 circuits

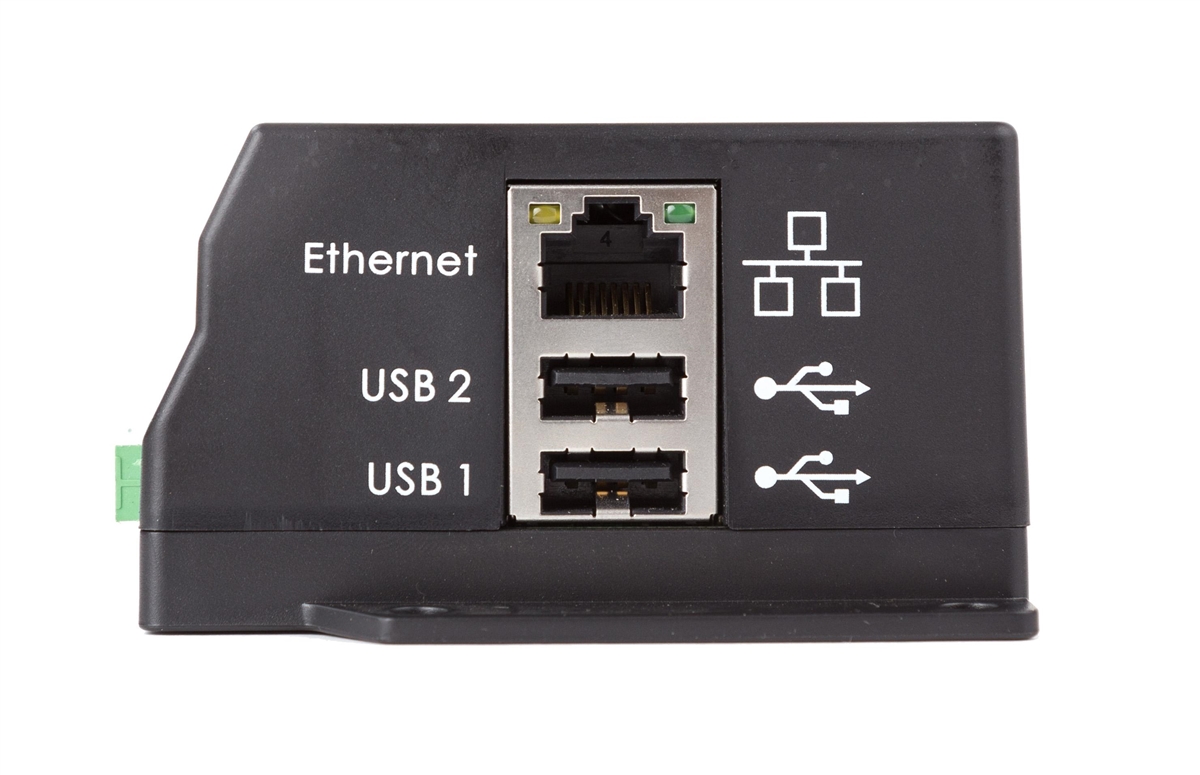

  • 2 USB Inputs, DC Voltage port
  • LCD Screen

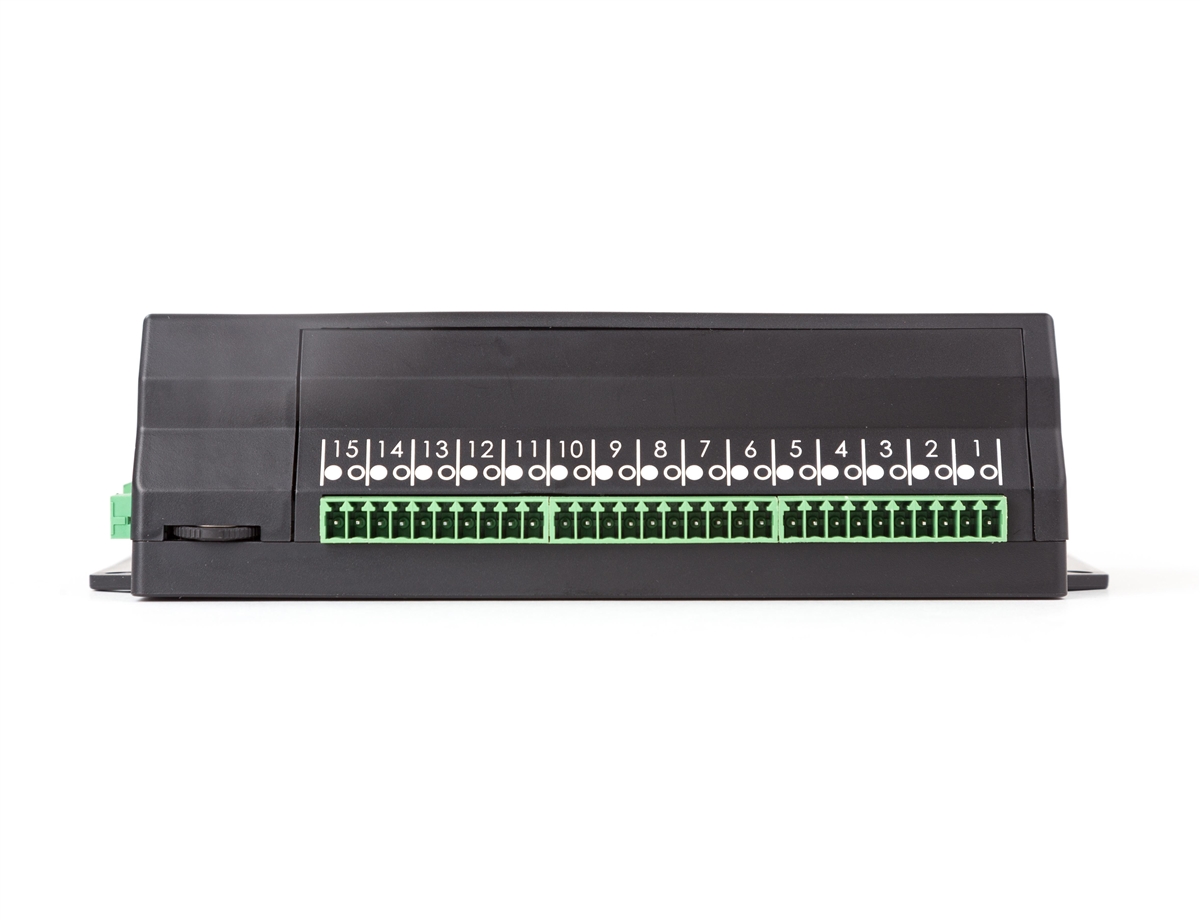

  • 15 Sensor Inputs
  • Built in Ethernet
  • WiFi and Cellular communication (using optional USB devices / BACnet IP compatible)
  • Building-demand/consumption recording
  • Supports wide range of current transformers (CTs) to accommodate virtually any size load
  • Built-in web server & fully web-configurable
  • Built-in solid-state memory and product lifetime data storage
  • Free life-time firmware upgrades
  • Windows, Mac, Linux, & smart-phone compatible

For more details, please refer to the product datasheet.
