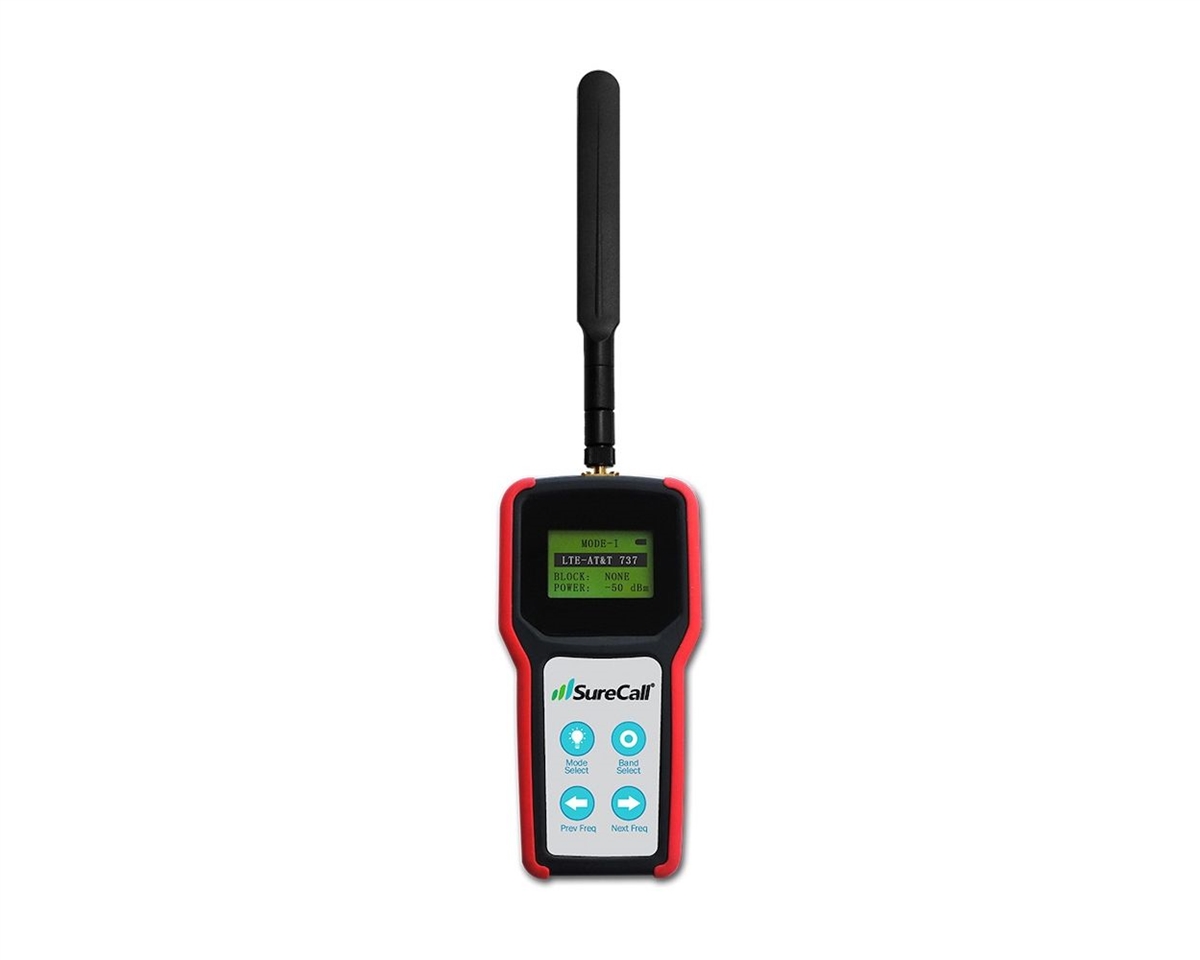

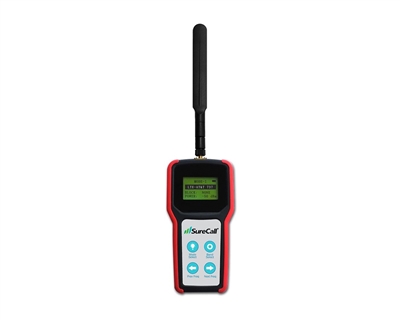

SureCall RF Signal Meter Kit
Larger Photo
 SureCall RF Signal Meter Kit
Our Price: $329.00


Availability: Call or message us for availability
Product Code: SC-METER-01
Qty:

Description


Quickly measure signal strength, map indoor frequency levels and identify peak antenna alignment for cell phone signal boosters with the SureCall RF signal meter. Optimize installation by measuring signal levels for LTE, AWS, PCS and Cellular frequencies for all North American cell carriers.

Use the whip antenna with the meter to quickly assess indoor signal levels, identify dead zones and map coverage needs. Then, measure outdoor signal levels to determine the ideal location for outdoor antenna placement. Also, identify peak antenna alignment by connecting the meter directly to the antenna using the provided cable.

Features

  • Digital LCD readout for each band
  • Three selectable modes: frequency, bands and block power
  • Controllable backlight for dark environments
  • Extended battery life

Kit Contents

  • RF Signal Meter
  • Flat right-angle antenna with SMA-Male connector
  • 24” SMA-Male to N-Male Cable Connector
  • 9” SMA-Male to N-Female Cable Connector
  • N-Female to F-Male Connector
  • N-Female to F-Female Connector
  • 110V AC Power Adapter
  • (4) AAA NiMH Rechargeable batteries
Frequencies728-746 LTE / 746-757 LTE / 869-894 Cellular / 1930-1995 PCS / 2110-2155 AWS
Standards supportedCellular, PCS, AWS, Verizon LTE, AT&T LTE
Input Impedence50 Ohm
Max Gain Shown-40 dBm
Receive Sensitivity-110 dBm
Tolerance<3 dB
AC Power AdapterInput: AC 110V, 60 Hz / Output: DC 5V
DC Power(4) AAA NiMH Rechargeable batteries
Power Consumption<1.5 Watts
RF ConnectorSMA Female
CableRG-174
Battery LifeStandby: 3.5 hours / Active: 2.5 hours
Weight7.2 oz
Dimensions6.3" x 3.3" x 1.3"
