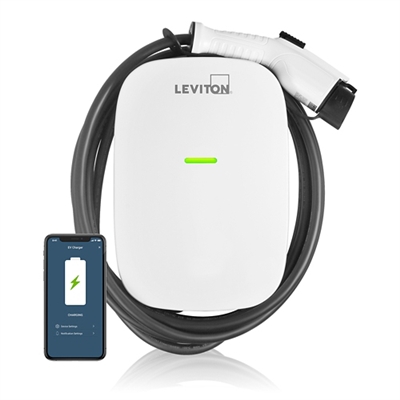

EV Series Smart Home Level 2 Electric Vehicle Charging
Station, 32A, 208/240 VAC, 7.6kW Output, J1772 Charge Connector, 18'
Cord, Includes Mounting Bracket and Pre-Attached Input Cable, Optional
RFID Control, Wi-Fi Compatible (Wi-Fi Function 802.11 b/g/n),
Replacement for EVR30-B1C and EVR30-R2C. HARDWIRED ONLY

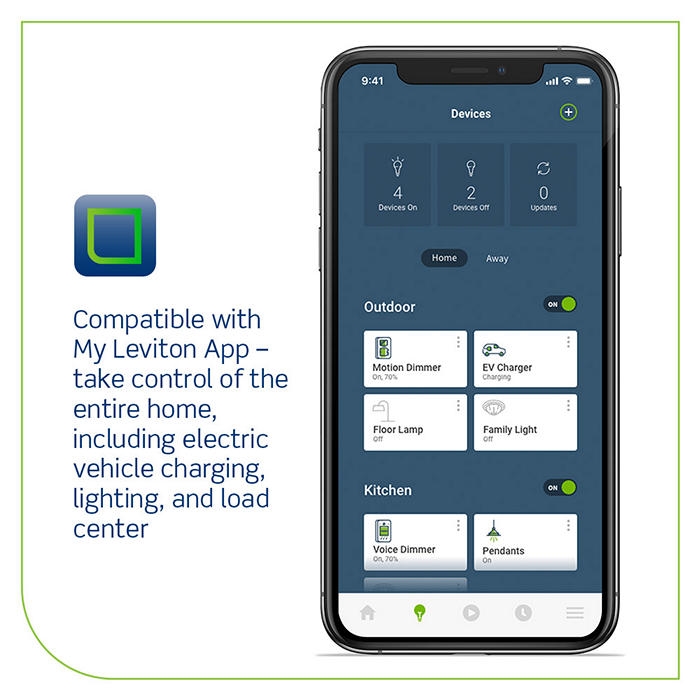

- SMART – Works with the My Leviton App via Wi-Fi, allowing you to take
control of your entire home, from load center to lighting to EV charger.
- THE BRAND YOU TRUST – Leviton has been in homes for over a century and
electrifying vehicles for over a decade. Charge at ease with UL/Energy
Star Certified stations supported by a 24/7 dedicated team

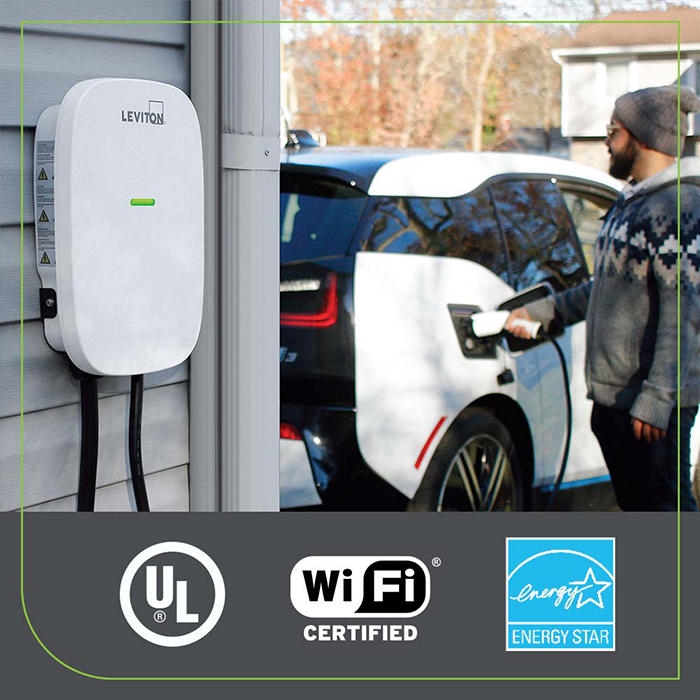

- FOR ANY APPLICATION – featuring a water-resistant enclosure rated NEMA
Type 3R and a cable designed to prevent freezing and cracking in
extreme weather, you can install both indoors and outdoors

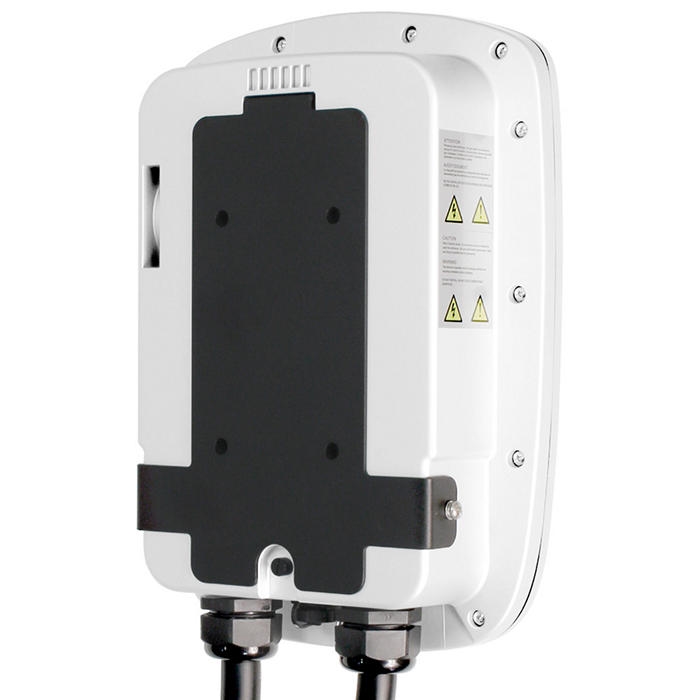

- EASY TO INSTALL – benefit from major times savings with a pre-attached
input cable and included mounting hardware. Note this station is
hardwired and requires a 40 Amp breaker
- CHARGE ANY ELECTRIC VEHICLE – with an industry standard SAE J1772™
cable, the EV Series can charge any EV, including Audi, BMW, Ford,
Honda, Subaru, and even Tesla with a Tesla-supplied adapter
UPC Code: 078477877586
- Mechanical Specifications
Cable Length : 18 ft. (5.5 m)
Material Specifications Enclosure Material : Plastic (PC+PBT)Enclosure Rating : NEMA Type 3R Status Indicator : Power Present, Charging, Fault Product Features Application : Home|CommercialCover Locking Mechanism : Phillips Head Screws, No Padlock Option Device Type : Charger Feature : My Leviton Enabled Warranty Warranty : 2-Year Limited
Electrical Specifications Amperage : 32 ABreaker : 40 A Charge Connector Cord : #10 AWG SAE J1772 Number of Phase / Wire : L1, L2 and Ground, Bottom Feed Operating Temperature : -30°C to 50°C Output Power : 7.6kW Short Circuit Current Rating : 20 mA CCID per UL 2231 Voltage : 208/240 VAC Environmental Specifications Altitude : Up to 6,500 ft. (2,000 m)Charging Cable Operating Temperature : -22°F to +122°F (-30°C to +50°C) Cooling : Natural Cooling Operating Humidity : < 95% Relative Humidity, Non-Condensing Standards and Certifications Standards and Certifications: UL2594 | UL 2231-1 | UL 2231-2 | UL 2251 | UL62 | UL 991 |UL 1998 | NFPA 70 Article 625 | UL840 | CSA Std. C22.2#280 | OCPP 1.6 Compliant
For further details, please refer to the Leviton datasheet
|
|
 |
 |
 |
 |

|
