EV Charge Solutions® Level 1 EV Charger

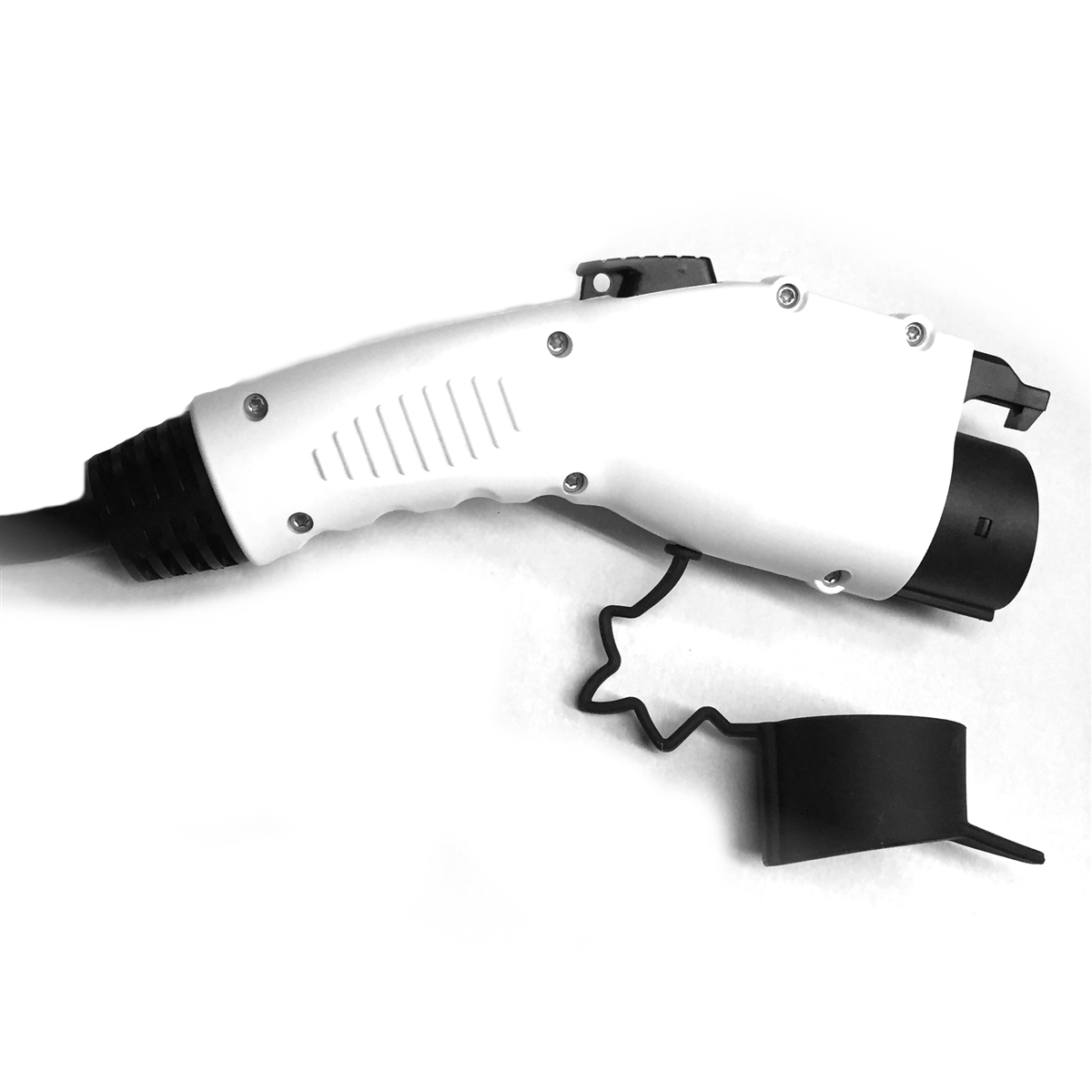

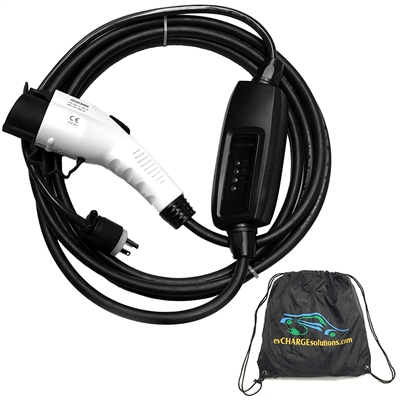

This is an EV Charge Solutions® Level 1 16 amp charging station. The charge cable measures 25 feet. This is a compact portable station that is an ideal solution for low-cost charging in your garage or to keep in the trunk of your EV for charging at work or on trips. The charging station features a control box with LEDs indicating the status of the charge. There is a description for each light pattern in the product photos above. The charger comes with a soft gel cap that covers the connector and keeps it from getting wet or dirty.

Product specifications:

Charging plug meets SAE J1772 standards

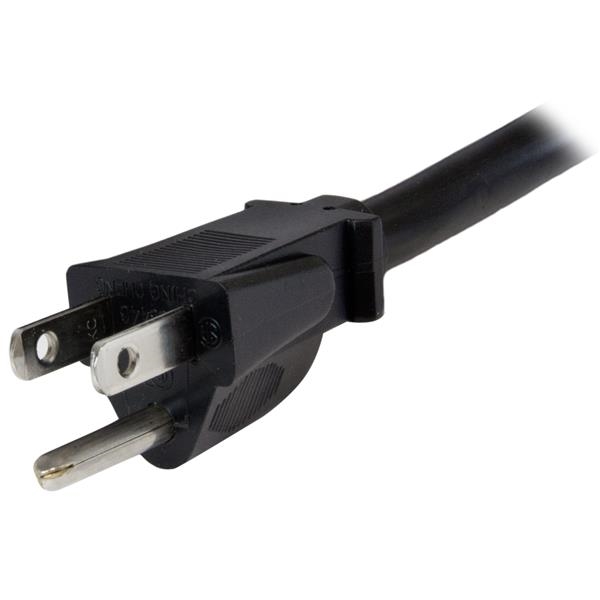

Power plug meets NEMA 5-15 standards

Control box meets SAE J1772 control principle

Excellent protection performance, protection grade IP55

Parameters

Rated current and voltage: 120V AC 16A

Working temperature: -30 ° C ~ + 50° C

Mechanical life:no-load plug in/pull out> 10000 times

Impact of external force: can afford 1m drop and 2T vehicle run over pressure

Materials

Case Material: Thermo plastic, flame retardant grade UL94-0

Contact Pin: Copper alloy, silver + thermo plastic on the top

Sealing gasket: rubber or silicon rubber

Control Box

Leakage protection(Restart recover)

Over-voltage under-voltage protection (self-checking recover)

Overload protection (self-checking recover)

Lightning protection

*requires dedicated 20 Amp circuit
