EV Charge Solutions® Dual Voltage Level 1 & Level 2 EV Charger

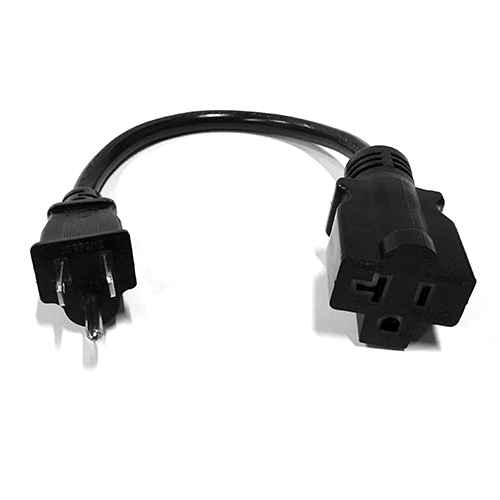

The dual-voltage portable EV charger is here! Finally you can charge anywhere you go without restrictions from plug types. This charger is a 16 amp EVSE that has a voltage range of 120-240 volts. The charger plugs directly into your NEMA 6-20 socket or comes with a 5-15p adapter.

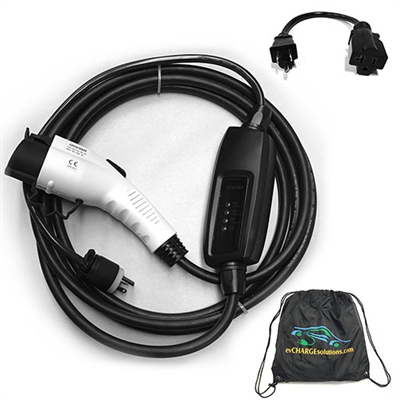

The charge cable measures 25 feet from plug to plug. This is a compact portable station that is an ideal solution for low-cost charging in your garage or to keep in the trunk of your EV for charging at work or on trips. The charging station features a control box with LEDs indicating the status of the charge. There is a description for each light pattern in the product photos above. The charger comes with an

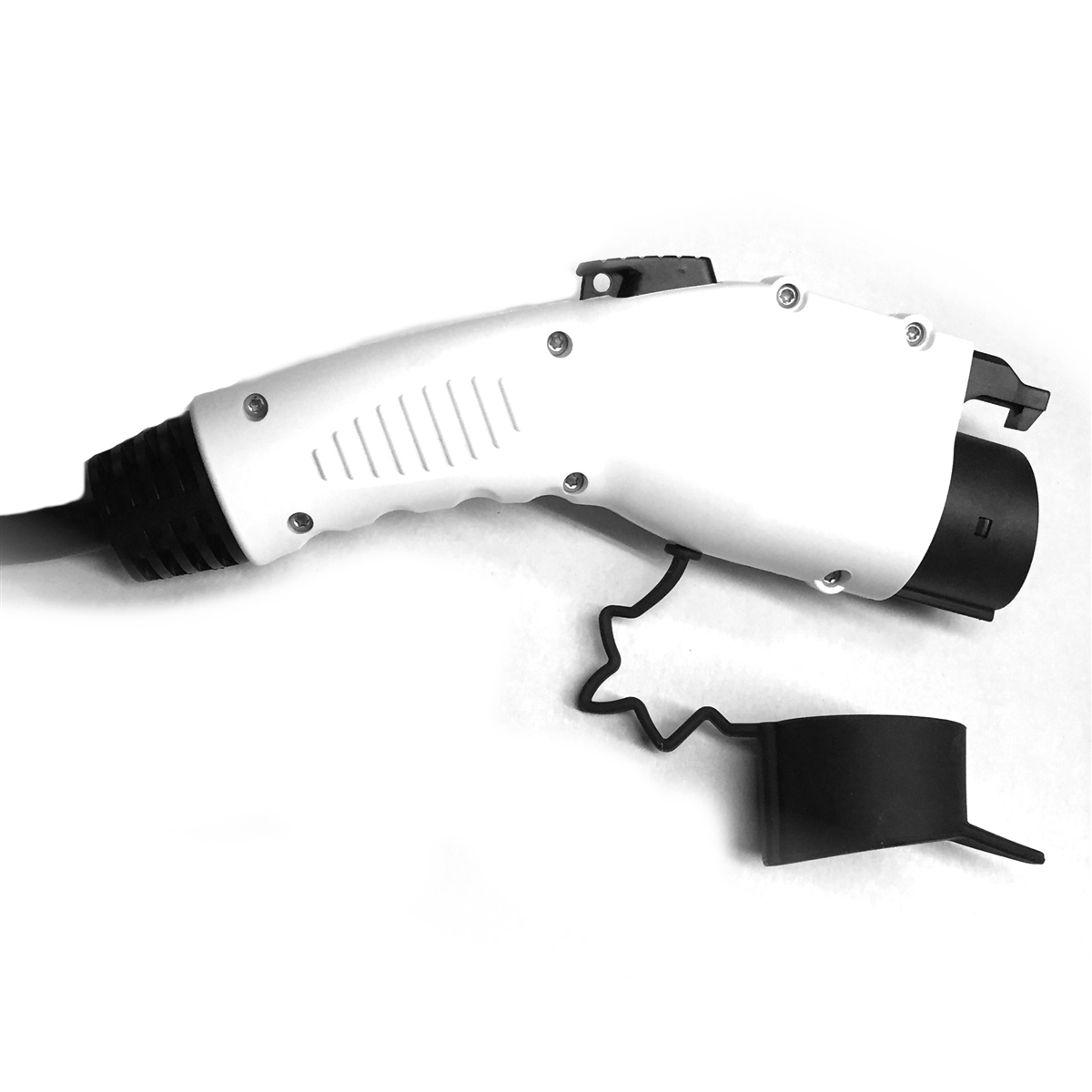

EV Charge Solutions draw string bag for storage and portability, as well as a soft gel cap that covers the connector and keeps it from getting wet or dirty.
Product specifications:
Charging plug meets SAE J1772 standards
Power plug meets NEMA 6-20P standards (5-15P adapter included)
Control box meets SAE J1772 control principle
Excellent protection performance, protection grade IP55
Parameters
Rated current and voltage: 120/240V AC 16A
Working temperature: -30 ° C ~ + 50° C
Mechanical life: no-load plug in/pull out> 10000 times
Impact of external force: can afford 1m drop and 2T vechicle run over pressure
Materials
Case Material: Thermo plastic,flame retardant grade UL94-0
Contact Pin: Copper alloy, silver + thermo plastic on the top
Sealing gasket: rubber or silicon rubber
Control Box
Leakage protection(Restart recover)
Over-voltage under-voltage protection (self-checking recover)
Overload protection (self-checking recover)
Lightning protection
One Year Warranty
Requires dedicated 20 Amp circuit
