Delta Wallbox 25kW DCFC 25kW

Home > EV Products > By Brand > Delta >

Delta Wallbox DCFC 25kW - Dual Port

delta dcfc dc fast charger wallbox charging station

Alternative Views:

Availability: Usually ships same day or next day
Product Code: DELTADCFCDUAL

Call for Project Pricing and Assistance

Description

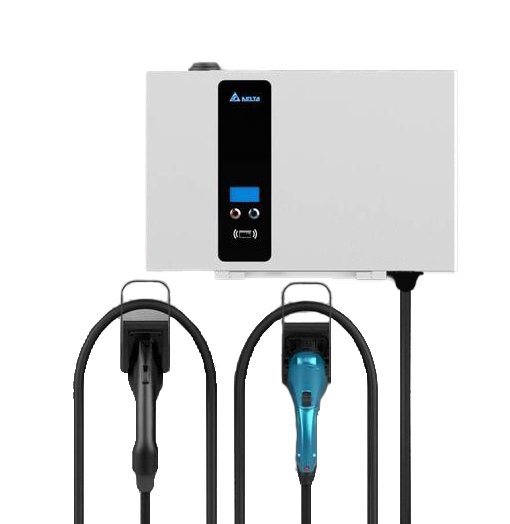

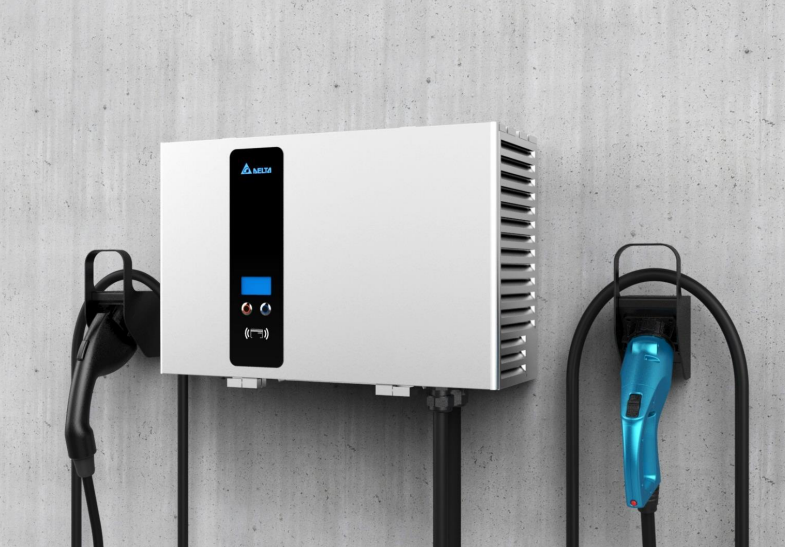

Delta's 25kW Wallbox DC Quick EV Charger aims to improve convenience to EV drivers. The fast charger features dual charge connectors, one with J1772 plug type and one CHAdeMO plug.

Beside its fast charging features (the 24kWh battery of a Nissan Leaf can be recharged from 0% to 80% in approx. 40 minutes), the system offers dual output as well as a pluggable modular power system architecture for a meaningful reduction in installation and maintenance costs.

Delta's EV Charging Solutions feature RFID and mobile app user access, which make these EV chargers ideal for various commercial applications like EV parking, fleet charging and also residential.

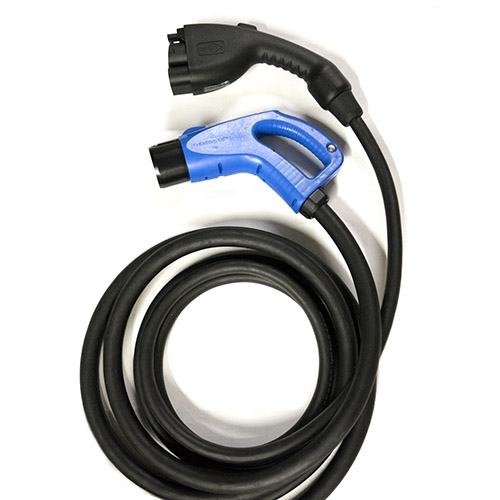

SAE Combo / CHAdeMO dual charging ports
DIN 70121 / CHAdeMO compliance
Max. output power: 25kW
Output voltage range: 200-500Vdc (SAE Combo); 50-500Vdc (CHAdeMO)
Max. 94% power efficiency
RFID card reader for user authentication
Network connectivity (OCPP)
Type 3R protection and IK08 vandal-proof casing
Available in 3 power inputs (pricing varies, please call 585.533.4051):
- 3 phase, 208 volt
- 3 phase, 480 volt
- 1 phase, 240 volt

For more specifications, take a look at the datasheet.

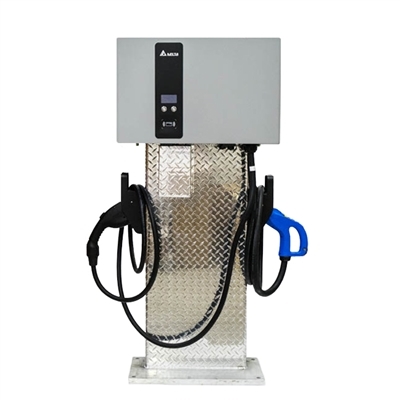

Specifications on the pedestal mount can be found here.
