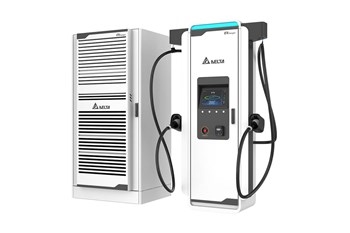

Delta High Power Charger 350kW offers the fastest charging time than any other charger.

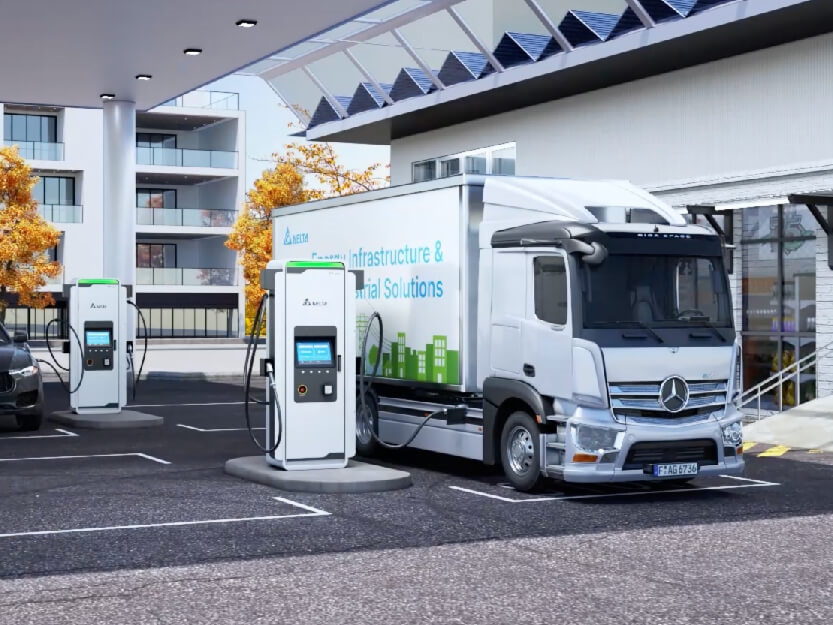

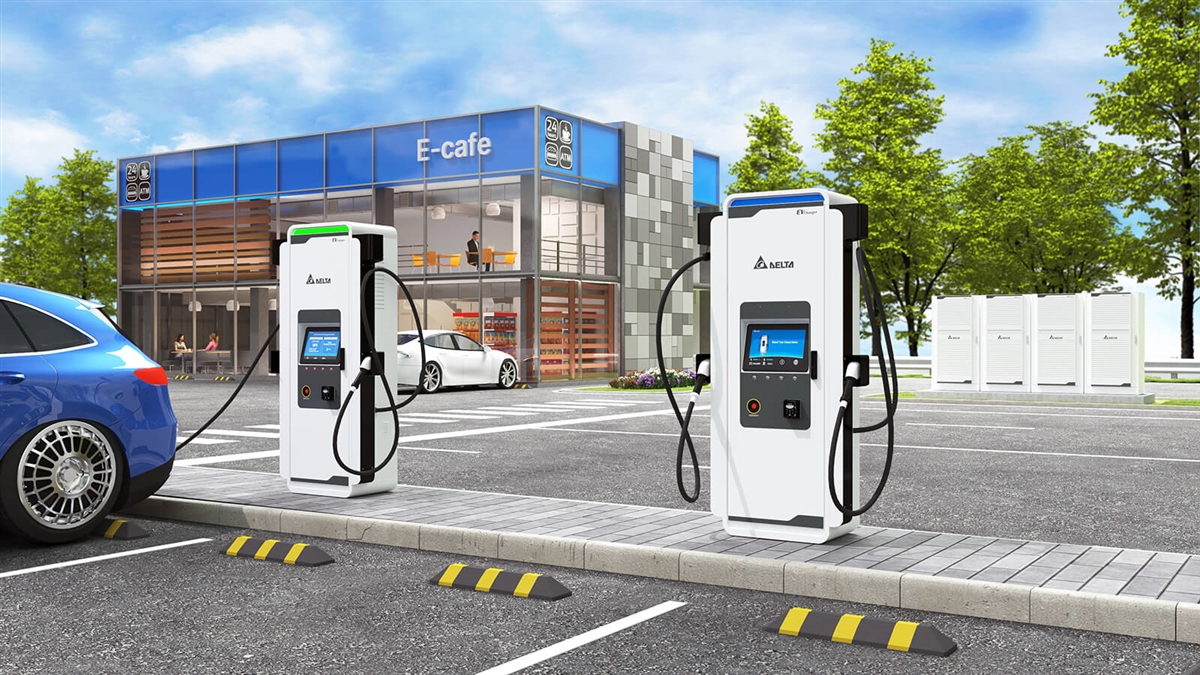

It is ideally suited in highway rest stops, traditional fuel stations
and fleet charging due to its high power of up to 350kW, equal load
distribution and simultaneous charging features charging 2 vehicles at a
time.

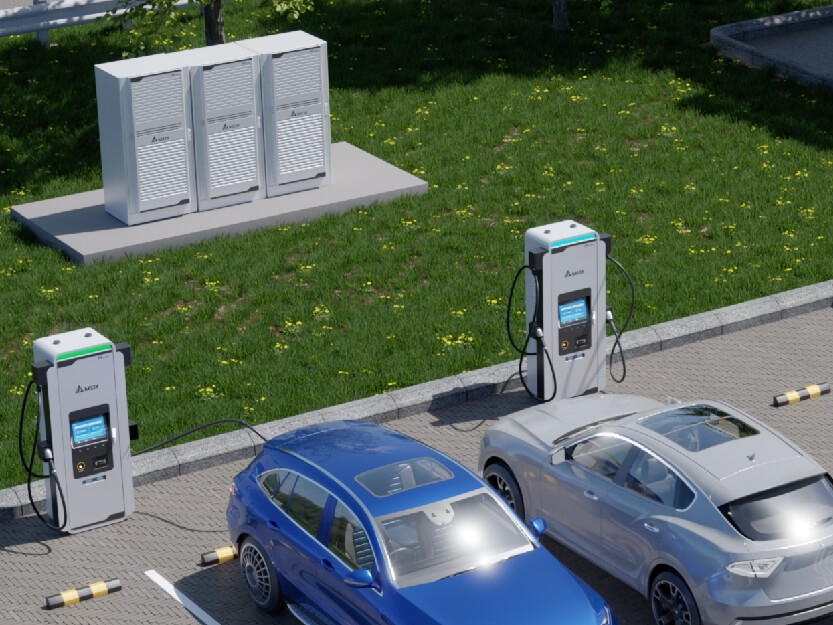

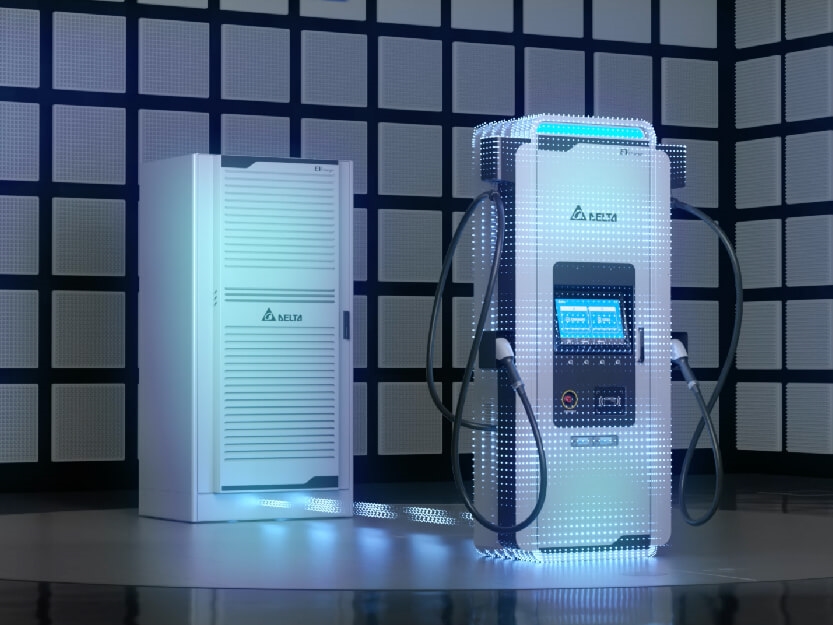

High power efficiency and the ability to share power from the power
cabinet between two dispensers enable to reduce cost of ownership. It
also offers a user-friendly design with an LED status light visible from
a distance and a 15-inch display.Delta High Power charger 350kW helps
EV drivers shorten the time get back on the road.
- Power Input
Input Rating - 480V, 3-Phase, 50/60Hz
Input Current - 2.0A
Input Breaker - 6A breaker
Power Output
Max Voltage Rating - 150-950 Vdc
Output Interface - Double CCS1; NACS (SAE J3400) under planning
DC Output Current - Max. 500A / 500A
Protection
Protection - Over current, Under voltage, Over voltage, Residual current, Surge protection, Short circuit, Over temperature, Ground fault
User Interface & Control
Display - 15 inch LCD panel
Support Language - English (Other languages available upon request)
Push Buttons - 4 Buttons for HMI
User Authentication - ISO/IEC 14443A/B, NFC
Charge option - Simultaneous charging with equal distrubutions charging
Communication
Network Interface - Ethernet, Cellular (Option)
Protocol - OCPP v1.6J, upgradable to OCPP v2.0.1
Environmental
Operating Temperature - Operating at 22F to + 122F (-30C to +50C); Derating: < -5C or >+45C
Storage Temperature - -40F to +176F (-40C to +80C)
Humidity - < 95% relative humidity, non-condensing
Altitude - 6,500 ft (2,000m)
Mechanical
Ingress Protection - IP55 / NEMA 3R
Enclosure Protection - IK10
Cooling - Forced Air
Charging Cable Length - 14.76ft (4.5m)
Dimension (W x H x D) - 42.5× 78.7× 19.1inch (1080 × 2000× 485 mm)
Weight - 706 lb (320 kg)
Regulation
Certification - UL 2202, UL 2231
Cable Management - Weight based retractor
|
|
|
 |
|
 |
|
