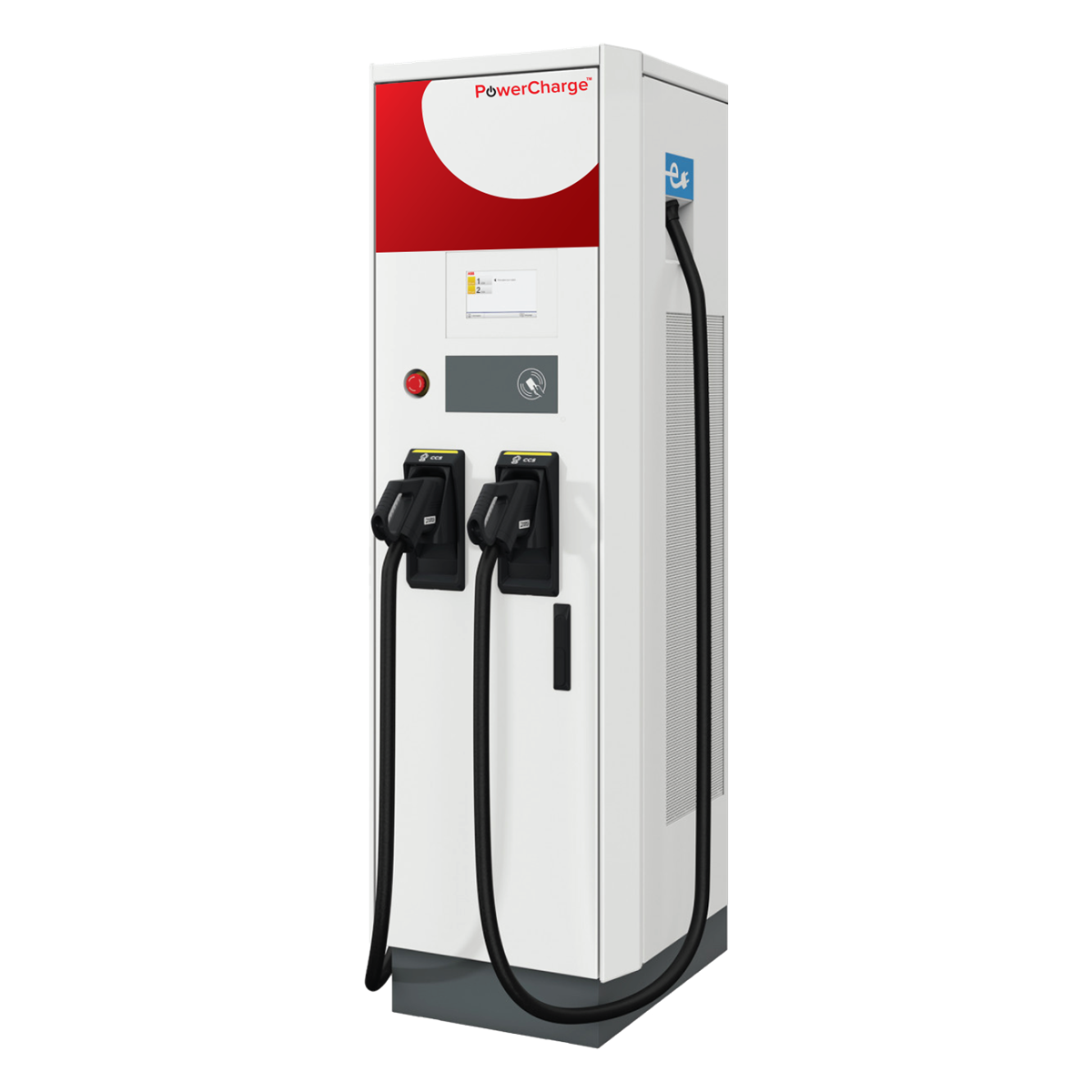

Advanced, flexible, compact, and smart makes the PowerCharge™ Thunder Series DC Fast Charger the Choice for Safe & Reliable Fast Charging
Key Features Include:
HIGH RELIABILITY - Delivers up to 920 VDC in all power configurations for current and future electric cars, trucks, vans, and buses
LCD TOUCHSCREEN - High brightness and graphical visualization of the charging process
SAFETY - Emergency stop button to immediately stop charging operation
CONNECTED - 24/7 remote services and updates to support every new EV on the road, easy remote OCPP integration, optional Credit Card Reader
HIGH UTILIZATION - Simultaneous charging for two electric vehicles, Flexible connector combinations including a high current cable option for up to 400 A
ROBUST - All-weather powder-coated stainless steel enclosure
CABLE RETRACTORS - Convenient and hassle-free reach with retractable cable management option
AUTHENTICATION - Automatic authetication via CCS connector via OCPP and Autocharge fuctionality as well as ISO 15118 implementations
EASY INSTALLATION - Easy installation and serviceability for fast commissioning, maintenance, and field services
- Maximum Output Power: 90 kW, 120 kW or 60 kW x2, 180 kW or 90 kW x2
AC Input Voltage: 480Y / 277 VAC +/- 10% (60 Hz)
AC Input Connection: 3-phase: L1, L2, L3, GND (no neutral)
Recommended upstream circuit breaker(s): 150 A, 200 A, 300 A
DC output voltage: CCS-1: 150 - 920 VDC; CHAdeMO: 150 - 500 VDC
DC output current: CCS-1: 400 A / CHAdeMO: 200 A, CCS1: 400 A, CHAdeMO: 200 A - Optional CCS1 300 A (nominal) and 400 A (peak) high current cable(s)
Charging protocols: CCS1 and CHAdeMO 1.2
User interface: 7” high brightness full color touchscreen display
Network connection: GSM/3G/4G modem; 10/100 Base-T Ethernet
Protection: IP54, NEMA 3R; indoor and outdoor rated
Charge cable: 6 m (19.6 ft)
Dimensions (H x W x D): 1900 x 565 x 880 m / 74.8 x 22.2 x 34.6 in
|
|
|
 |
|
 |
|
