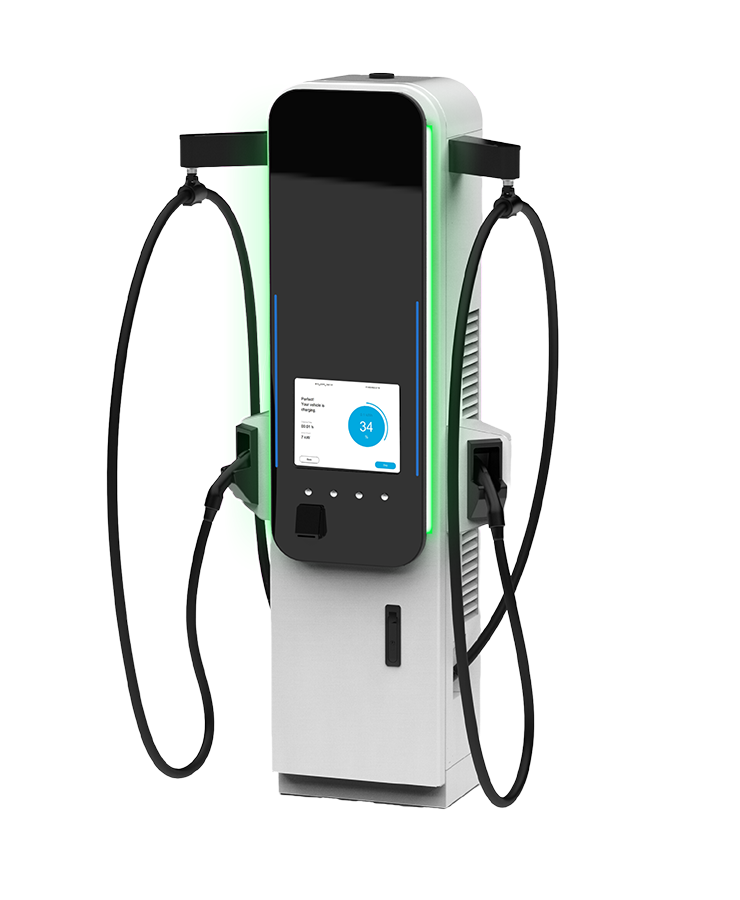

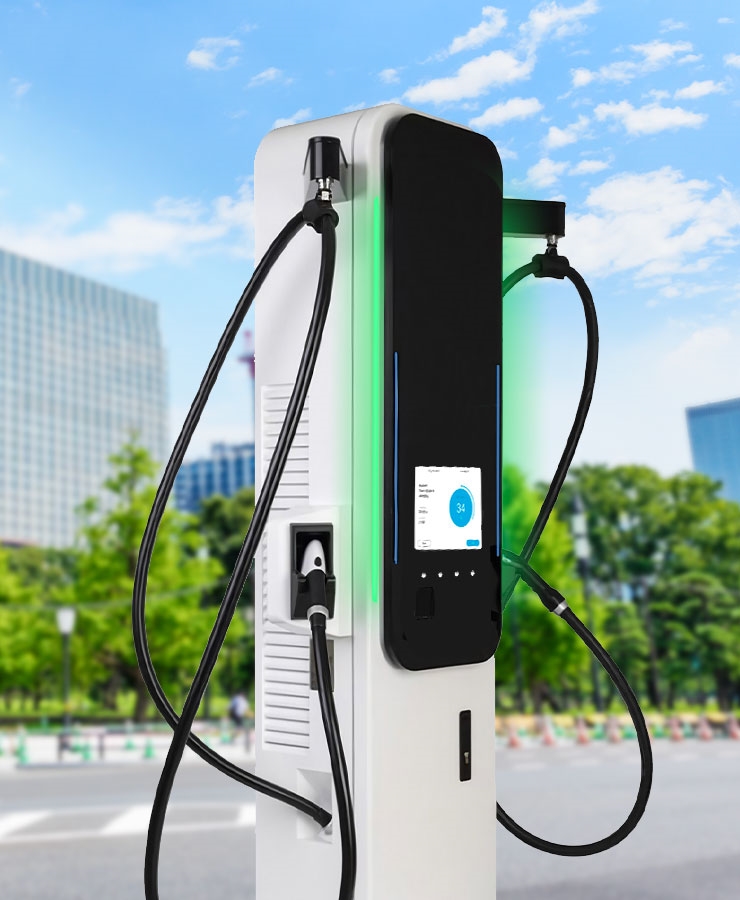

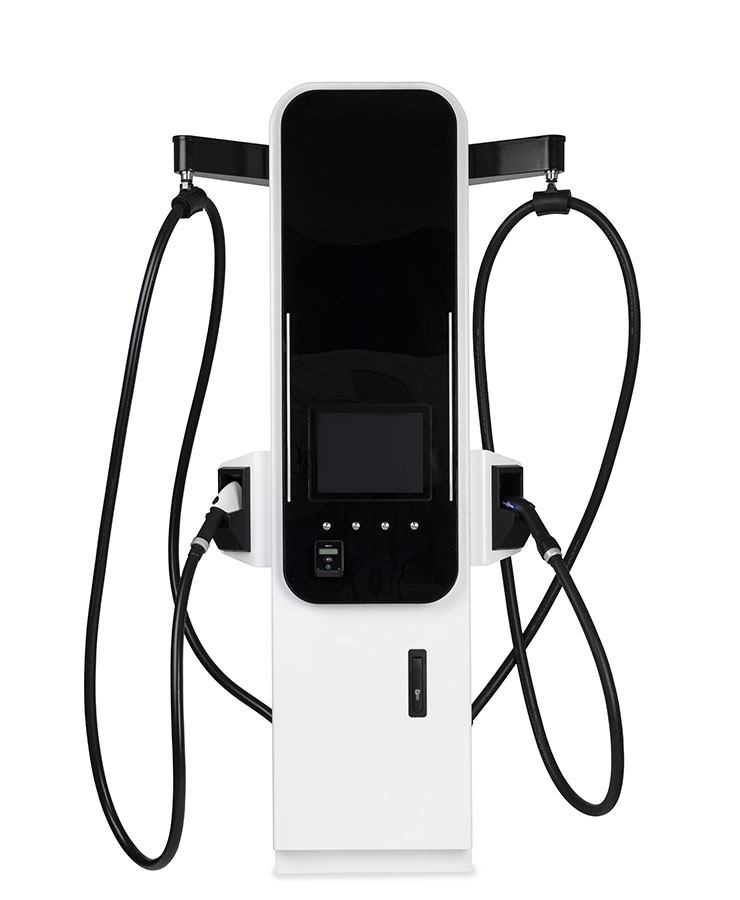

The BTCPower Gen4 200 400 500 Amp Dispenser is designed with an adaptable configuration to reach power levels of up to 360 kW. Future-proofed with dynamic power sharing and max 1,000 VDC to provide fast charging in less time.
Convenience and Rapid Speed
Increase charging speed, reliability, and customer satisfaction with the new Gen4 360 kW DC fast charging system from BTC Power. The new Gen4 dispenser supplies up to 500 A continuous, with a futuristic design boasting a maximum 950 VDC architecture. The system is designed for an adaptable configuration to reach power levels of up to 360 kW, ensuring each EV plugged into the dispenser receives the energy it requires directly to the battery for a rapid charge.
Customizable commercial EV charging stations
Customize your setup with a choice of single or dual dispensers. The system integrates credit card and/or RFID readers for secure and quick payment transactions. An available crystal-clear 15-inch outdoor color touch display offers an intuitive user experience and opportunities for targeted promotional messaging or branding efforts.
Diverse connector configurations provide versatility for more universal charging ports:
Single or Dual CCS1
CHAdeMO and CCS1
Customers can trust its reliability as the Gen4 is both CTEP- and EnergyStarTM-approved.
Engineered for ultra-rapid EV charging
Experience swift charging times of between 10 and 15 minutes, depending on the battery capacity of the EV plugged into the dispenser. The Gen4 system is the prime choice for retail locations needing reliable DC fast charging stations for rapid customer turnover and maximum customer satisfaction.
- Connectors: CHAdeMO, SAE CCS1 (Liquid Cooled)
Rated Output Current: 200 A, 500 A
Max DC Voltage (VDC): 500 V - 950 V
Output Power: 350 kW Max
nput Power (Auxiliary): 480 VAC Split Phase
Input Current (Auxiliary): 7 A
Network: OCPP 1.6 BTCP (OCPP 2.0.1 available in future)
Dimension & Weight: 23” W x 18.5" D x 92.4"H, 1,100 Lbs
|
|
|
 |
|
 |
|
