Delta 350kW High Power Charger

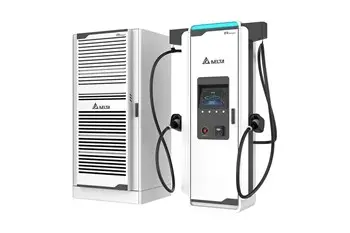

Delta High Power Charger 350 kW

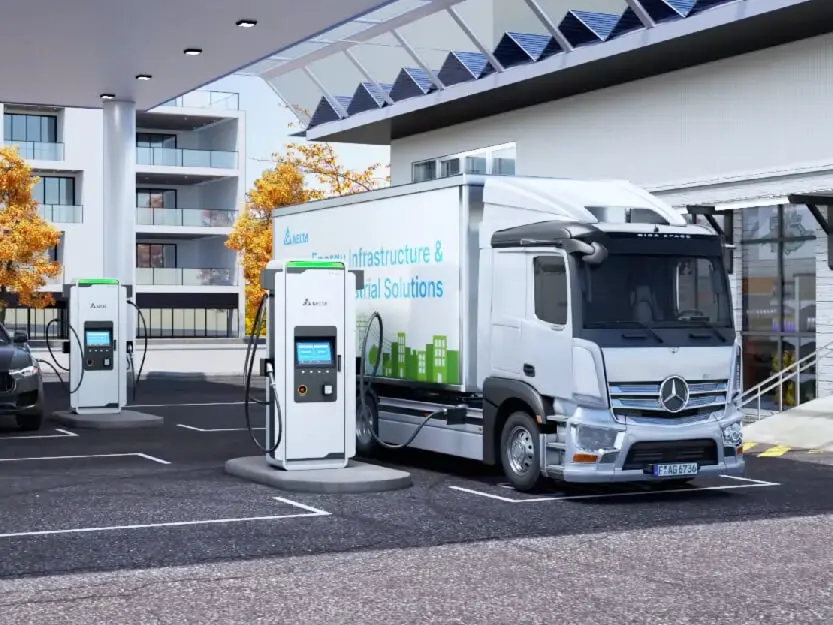

Delta’s 350 kW High Power Charger offers some of the fastest charging times available. It is ideal for highway rest stops, traditional fuel stations, and fleet charging applications due to its ultra-high power, equal load distribution, and ability to charge two vehicles simultaneously.
High power efficiency and dynamic power sharing between dispensers help reduce total cost of ownership. The charger features a user-friendly design with an LED status light visible from a distance and a 15-inch display. Delta’s 350 kW charger helps EV drivers shorten their downtime and get back on the road quickly.
Technical Specifications
Power Input
Input Rating: 480 V, 3-Phase, 50/60 Hz
Input Current: 2.0 A
Input Breaker: 6 A
Power Output
Maximum Voltage Rating: 150–950 V DC
Output Interface: Double CCS1; NACS (SAE J3400) under planning
DC Output Current: Max. 500 A / 500 A
Protection
Overcurrent
Undervoltage
Overvoltage
Residual current
Surge protection
Short circuit
Overtemperature
Ground fault
User Interface & Control
Display: 15-inch LCD panel
Supported Languages: English (others available upon request)
Push Buttons: 4 HMI buttons
User Authentication: ISO/IEC 14443A/B, NFC
Charging Option: Simultaneous charging with equal distribution
Communication
Network Interface: Ethernet, Cellular (optional)
Protocol: OCPP 1.6J, upgradable to OCPP 2.0.1
Environmental
Operating Temperature: −22°F to +122°F (−30°C to +50°C)
Derating applies below −5°C or above +45°C
Storage Temperature: −40°F to +176°F (−40°C to +80°C)
Humidity: <95% RH, non-condensing
Altitude: Up to 6,500 ft (2,000 m)
Mechanical
Ingress Protection: IP55 / NEMA 3R
Enclosure Protection: IK10
Cooling: Forced air
Charging Cable Length: 14.76 ft (4.5 m)
Dimensions (W × H × D): 42.5 × 78.7 × 19.1 in (1080 × 2000 × 485 mm)
Weight: 706 lb (320 kg)
Regulation
Certifications: UL 2202, UL 2231
Cable Management: Weight-based retractor
